DRM570615
SKU: 7760056085
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
DRM570524:

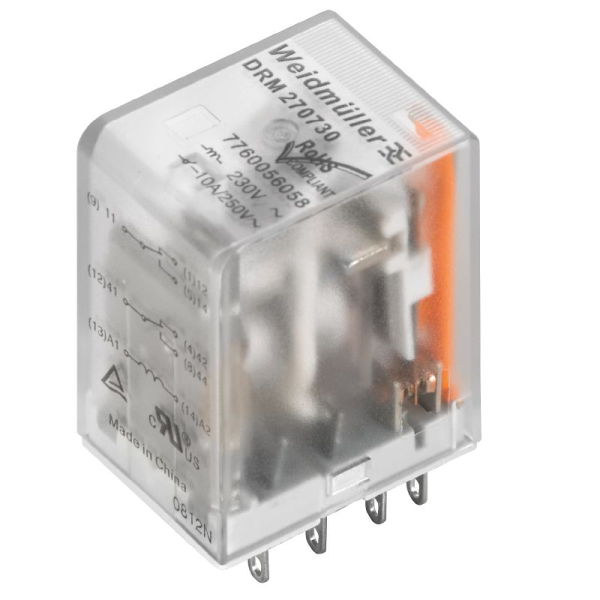

D-Series DRM, Relay.
There are four CO contacts with an AgNi flash gold plating.
Control voltage: 115 V DC.
Continuous current: 5 A.
Plug-in connector.
Individual relays in the D-SERIES DRM.
Four CO connections.
Optional AC or DC coils.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 35.7 mm.
Depth (inches): 1.406 inch.
Height: 27.4 mm.
Height (inches): 1.079 inch.
Width: 21 mm.
Width (inches): 0.827 inch.
Net weight: 34.4 g.
Temperatures:
Storage temperature: -40 °C - 70 °C.
Operating temperature: -40 °C - 55 °C.
Humidity: 35 - 85 % rel. humidity, no condensation.
Environmental Product Compliance:
REACH SVHC: /.
eshop_Filter_02_01_Relay:
Rated control supply voltage Us at AC 50 Hz, min.: 92 V.
Rated control supply voltage Us at AC 50 Hz, max.: 126.5 V.
Rated control supply voltage Us at AC 60 Hz, min.: 92 V.
Rated control supply voltage Us at AC 60 Hz, max.: 126.5 V.
Rated data UL:
Certificate No. (cURus): E312083.
Control side:
Rated control voltage: 115 V AC.
Rated current AC: 12.6 mA (50 Hz), 10.8 mA (60 Hz).
Power rating: 1.0 - 1.2 W.
Coil resistance: 4340 Ω ± 10 %.
Coil tolerance: 10 %.
Status indicator: No.
Load side:
Rated switching voltage: 250 V AC.
Continuous current: 5 A.
Max. switching frequency at rated load: 0.1 Hz.
Min. switching power: 10 mA @ 12 V, 100 mA @ 5 V.
Inrush current: 10 A / 50 ms.
AC switching capacity (resistive), max.: 1250 VA.
DC switching capacity (resistive), max.: 120 W @ 24 V.
Switch-on delay: < 20 ms.
Switch-off delay: < 20 ms.
Contact type: 4 CO contact (AgNi flash gold-plated).
Mechanical service life: 20 x 106 switching cycles.
General data:
Test button available: No.
Mechanical switch position indicator: Yes.
Colour: Transparent.
UL94 flammability rating component:
Component: Relay cover.
UL94 flammability rating: V-2.
Component: Relay baseplate.
UL94 flammability rating: V-0.
Component: Relay status indicator.
UL94 flammability rating: HB.
Insulation coordination:
Rated voltage: 250 V.
Pollution severity: 2.
Surge voltage category: III.
Clearance and creepage distances for control side - load side: ≥ 5.5 mm.
Dielectric strength for control side - load side: 1.8 kVeff /1 min.
Dielectric strength of neighbouring contacts: 1 kVeff / 1 min.
Dielectric strength of open contact: 1 kVeff / 1 min.
Impulse withstand voltage: 6 kV (1.2/50 µs).
Protection degree: IP20.
Further details of approvals / standards:
Certificate No. (cURus): E312083.
Connection data:
Wire connection method: Plug-in connection.
