FS 4CO
SKU: 7760056107
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

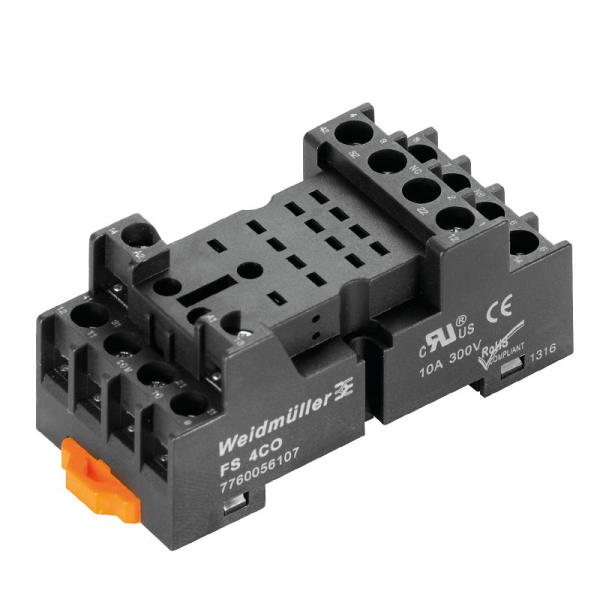

FS 4CO:
D-SERIES DRM.
Relay socket.
4 CO connections.
Continuous current: 10 A.
Screw connections.
Relay sockets for D-SERIES DRM relays.
2 and 4 CO connections.
Screw and push in connection.
Standard and low heights.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 28.9 mm.
Depth (inches): 1.138 inch.
Height: 70 mm.
Height (inches): 2.756 inch.
Width: 30.6 mm.
Width (inches): 1.205 inch.
Net weight: 47.2 g.
Temperatures:
Storage temperature: -40 °C - 70 °C.
Operating temperature: -40 °C - 70 °C.
Environmental Product Compliance:
REACH SVHC: /.
Rated data UL:
Certificate No. (cURus): E312083.
Load side:
Rated switching voltage: 250 V AC.
Continuous current: 10 A.
Max. switching voltage, AC: 300 V.
Contact type: 4 CO contact.
General data:
Version: flat design.
Rail: TS 35.
Colour: black.
UL94 flammability rating component:
Component: Housing.
UL94 flammability rating: V-2.
Component: Mounting foot.
UL94 flammability rating: HB.
Component: Retaining clip.
UL94 flammability rating: HB.
Insulation coordination:
Pollution severity: 2.
Surge voltage category: II.
Clearance and creepage distances for control side - load side: ≥ 4 mm.
Dielectric strength for control side - load side: 2 kVeff / 1 min.
Dielectric strength of neighbouring contacts: 2 kVeff / 1 min.
Impulse withstand voltage: 4 kV (1.2/50 µs).
Protection degree: IP10.
Further details of approvals / standards:
Certificate No. (cURus): E312083.
Connection data:
Wire connection method: Screw connection.
Stripping length, rated connection: 7 mm.
Tightening torque, min.: 0.5 Nm.
Tightening torque, max.: 0.8 Nm.
Clamping range, min.: 0.5 mm².
Clamping range, max.: 2.5 mm².
Wire cross-section, solid, min.: 0.5 mm².
Wire cross-section, solid, max.: 2.5 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross section, finely stranded, max.: 2.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
Wire connection: M3 forked cable lug (insulated).
Blade size: size PH1.
Important note:
Product information:
The protection module (RC filter) RIM 3 110/230VAC LED with order no. 7760056045 is not compatible with this socket.
For this socket, a cross connection is not available.
