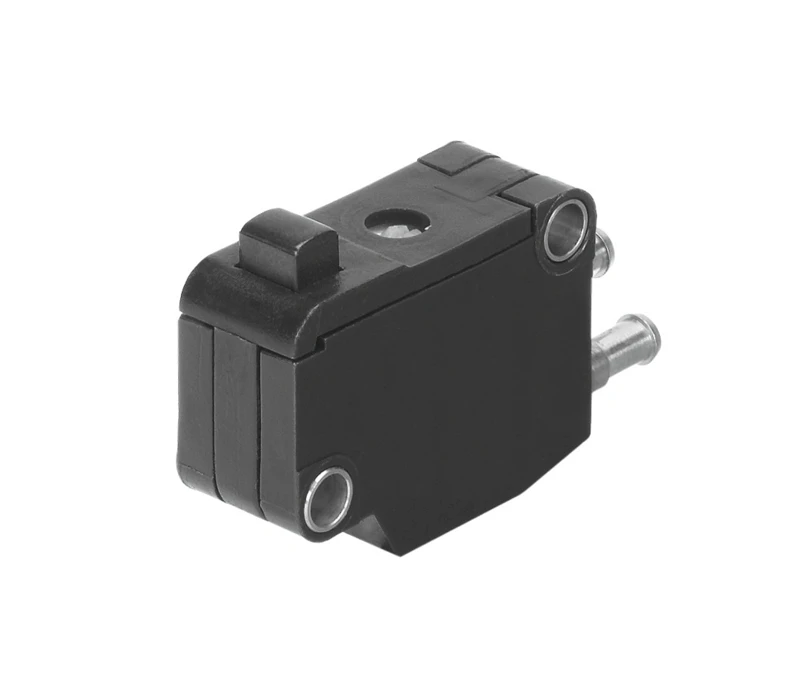

Micro stem actuated valve, S-3-PK-3-B

Specifications • Semi-rotary drives DSR/DSRL • Accessories, Pneumatic limit valves for end-position sensing, Normally closed • Valve function 3/2-way, closed, monostable • Type of actuation Mechanical • Standard nominal flow rate (standardised to DIN 1343) 60 l/min • Pneumatic working port PK-3 • Operating pressure -0.95 bar ... 8 bar • Design Poppet valve with spring return • Type of reset Mechanical spring • Nominal size 1.8 mm • Sealing principle Soft • Mounting position optional • Type of piloting Direct
