SIHA 3/G20
SKU: 7921560000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

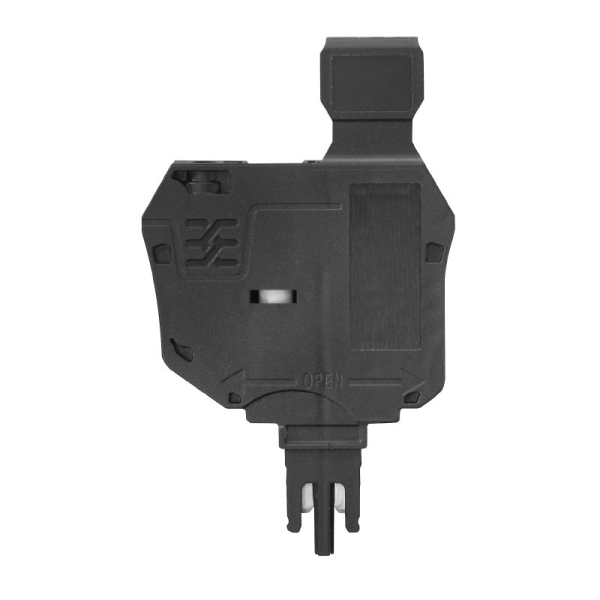

SIHA 3/G20:
The fuse holder SIHA quickly turns a disconnect terminal into a fuse terminal: simply remove the disconnect lever and attach the fuse unit.
Dimensions and weights:
Depth: 63.1 mm.
Depth (inches): 2.484 inch.
Height: 39.38 mm.
Height (inches): 1.55 inch.
Width: 6 mm.
Width (inches): 0.236 inch.
Net weight: 6.44 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Operating temperature: -50 °C - 120 °C.
Continuous operating temp., min.: -50 °C.
Continuous operating temp., max.: 120 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Wemid.
Insulating material: Wemid.
Colour: black.
UL 94 flammability rating: V-0.
System specifications:
Version: Fuse cartridge.
End cover plate required: No.
Additional technical data:
Installation advice: Operating instructions/catalogue.
Type of mounting: Plugged.
Conductors for clamping (rated connection):
Type of connection: Plug-in connection.
General:
Installation advice: Operating instructions/catalogue.
Operating temperature range, max.: 120 °C.
Rating data:
Rated voltage: 250 V.
Rated current: 6.3 A.
Rated impulse withstand voltage: 4 kV.
Pollution severity: 3.
