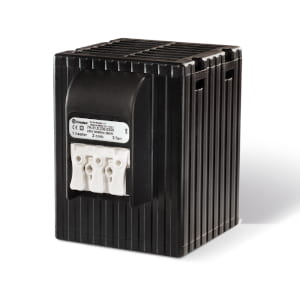

PANEL HEATERS - 250W 110…230VAC
SKU: 7H5182300250
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Electrical cabinets are intended to have their temperature regulated by the Electromechanica PANEL HEATER 7H5182300250.
It has a self-extinguishing PTC element contained in a DIN rail mountable, touch-safe housing.
This heater is perfect for keeping electrical enclosures at the right temperature and preventing dampness.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: 7H series.
Supply Voltage: 110 - 230V AC/DC.
Heating Power: 250 W.
Current: 1000 mA.
Mounting: DIN rail mounting.
Dimensions:
Height: 197 mm.
Width: 61 mm.
Depth: 81 mm.
Connection Type: Screw terminal connection (250/400W heaters supplied with fast wiring screwless terminals).
Compliance:
IEC/EN 60335-1.
IEC 60004-1.
Features:
small dimensions.
Safe to touch.
PTC resistance that regulates itself.
In opposition to condensation.
This heater creates a stable internal environment, which is ideal for guaranteeing the dependability and lifespan of your electrical equipment.
