RAIL MNT PANEL THERMOSTAT 1 NO
SKU: 7T8100002303
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

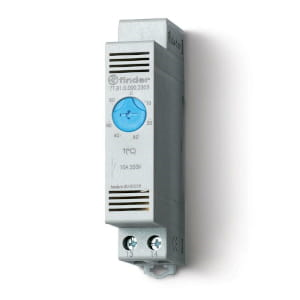

Temperature regulation inside electrical enclosures is the purpose of the Electromechanica RAIL MNT PANEL THERMOSTAT 7T8100002303.
It employs a thermostatic bimetal sensor with a snap-action feature to control HVAC systems and turn on signalling devices.
This thermostat is perfect for a variety of applications because it is small and simple to install.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: 7T series.
Supply Voltage: 250V AC.
Temperature Range: 0°C to +60°C.
Configuration: 1 x NO (Normally Open).
Mounting: DIN rail (EN 60715) mountable.
Dimensions:
Height: 86 mm.
Width: 17.5 mm.
Depth: 48 mm.
Enclosure Material: PA66 self-extinguishing to UL 94V-0.
Connection Type: IP20 protected screw terminals.
Compliance:
EN 60730-1.
UL approved (UL873 and C22.2).
Features:
Compact, condensed dimensions (17.5 mm broad).
Bimetal thermostatic sensor with snap action.
Ideal for regulating the temperature within enclosures.
Able could be used to turn on signalling devices or control ventilation and heating.
By maintaining the ideal temperature inside your electrical enclosures, this thermostat will increase the dependability and lifespan of your systems.
