RAIL MNT PANEL THERMOSTAT 1 NC
SKU: 7T8100002401
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

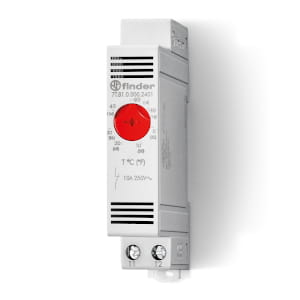

The RAIL MNT PANEL THERMOSTAT 7T8100002401 is designed to regulate temperature inside electrical enclosures.
It uses a bimetal thermostatic sensor with a snap-action function to activate signalling devices and regulate HVAC systems.
Due to its compact size and ease of installation, this thermostat is ideal for a wide range of applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: 7T series.
Supply Voltage: 250V AC.
Temperature Range: -20°C to +40°C.
Configuration: 1 x NC (Normally Closed).
Mounting: DIN rail (EN 60715) mountable.
Dimensions:
Height: 86 mm.
Width: 17.5 mm.
Depth: 48 mm.
Enclosure Material: PA66 self-extinguishing to UL 94V-0.
Connection Type: IP20 protected screw terminals.
Compliance:
EN 60730-1.
UL approved (UL873 and C22.2).
Features:
Minuscule, condensed dimensions (17.5 mm broad).
Bimetal thermostatic sensor with snap action.
Ideal for regulating the temperature within enclosures.
Able could be used to turn on signalling devices or control ventilation and heating.
By maintaining the ideal temperature inside your electrical enclosures, this thermostat will increase the dependability and lifespan of your systems.
