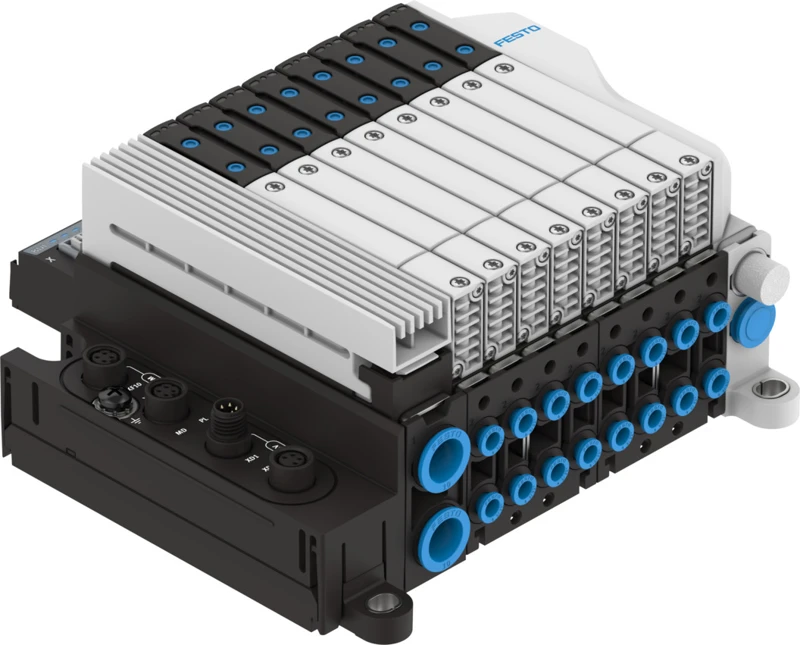

Valve terminal, VTUX-A-S
SKU: 8000805
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTUX
• Mounting method for sub-base With through-hole
• Grid dimension 10.55 mm ... 12.55 mm
• Type of mounting Tie rod
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Pilot medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Ambient temperature -5 °C ... 50 °C
• Storage temperature -20 °C ... 70 °C
• Nominal altitude of use
Buy currently uses Select Automation shop pricing and checkout.
Valve terminal VTUX
• The convertible valve terminal for maximum flexibility in machine design.
• It also offers the highest level of communication performance, from the tried-and-tested multi-pin interface to the latest AP communication interface, which has proven extremely valuable for further expansions.
• Flexible for centralised and decentralised installation
• Also flexible for decentralised installation
• Modular and cost-effective
• High flow rates
• Versatile options for creating pressure zones
