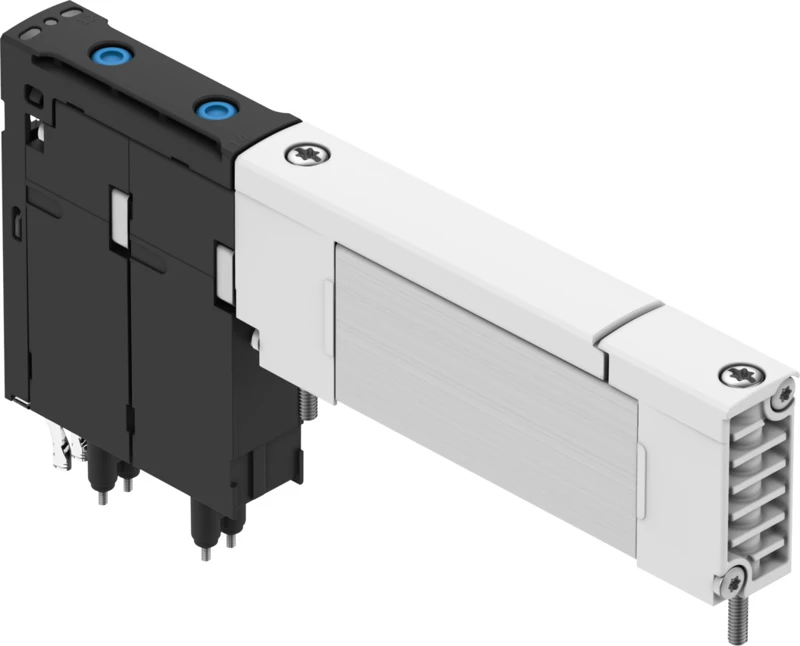

Solenoid valve, VUVX-...T1

Specifications • Solenoid valve plug-in VUVX • Valve function 2x3/2-way, monostable, closed, 2x3/2-way, open, monostable, 5/2 double solenoid, 5/2-way, monostable, 5/3 closed • Type of actuation Electric • Valve size 10 mm • Nominal flow rate standardised according to ISO 8778 510 l/min ... 730 l/min • Operating voltage 24V DC • Operating pressure -0.09 MPa ... 0.7 MPa • Operating pressure -0.9 bar ... 7 bar • Design Piston slide with sealing ring • Type of reset Mechanical spring, Pneumatic spring • Degree of protection IP40, IP65 • Width 10.35 mm • Nominal size 3.5 mm ... 4.2 mm
