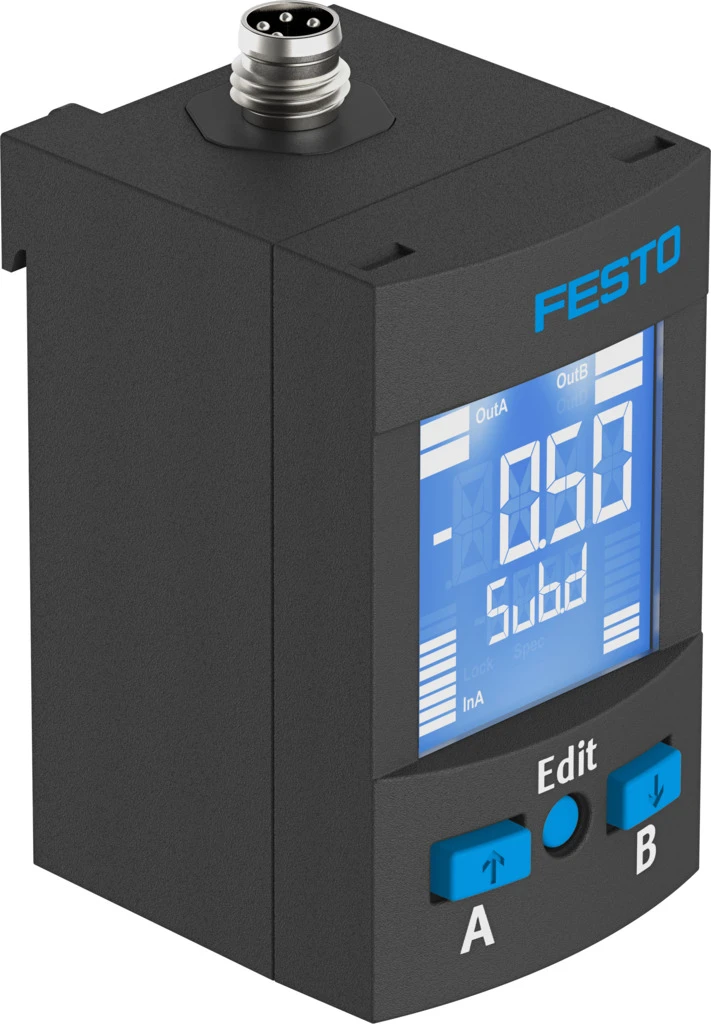

Pressure sensor, SPAU-P10R-H-T532D-L-PNLK-PNVBA-M8D
SKU: 8001215
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure sensors SPAU
• Start value for pressure measuring range 0 bar
• End value for pressure measuring range 10 bar
• Switching element function N/C or N/O contact, switchable
• Pneumatic connection QS-5/32
• Electrical connection 1, connector system M8x1, A-coded, to EN 61076-2-104
• Measurement method Piezoresistive pressure sensor
Buy currently uses Select Automation shop pricing and checkout.
Pressure sensor SPAU
• The pressure sensor SPAU has a uniquely flexible connection.
• Whether for pressure measuring, pressure monitoring or pressure sensing, all pressure values are always under control at a glance.
• Remote maintenance and parameterisation as well as simple sensor replication are possible in IO-Link® mode.
• For monitoring compressed air and non-corrosive gases
• With or without display
• Transfer of the pressure value as switching signal, analogue signal or via IO-Link® to the connected control system
• Maximum versatility thanks to a wide range of pneumatic adaptations and switchable electrical outputs
