Pressure sensor, SPAE-V1R-Q4-PNLK-2.5K
SKU: 8001443
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure sensors SPAE
• Start value for pressure measuring range 0 bar
• End value for pressure measuring range -1 bar
• Switching element function N/C contact - N/O contact - Switchable
• Pneumatic connection QS-4
• Electrical connection 3-wire - Cable - Open end
• Overload pressure 0.5 MPa
• Overload pressure 5 bar
• Overload pressure 72.5 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible
• Media temperature 0 °C ... 50 °C
• Ambient temperature 0 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.

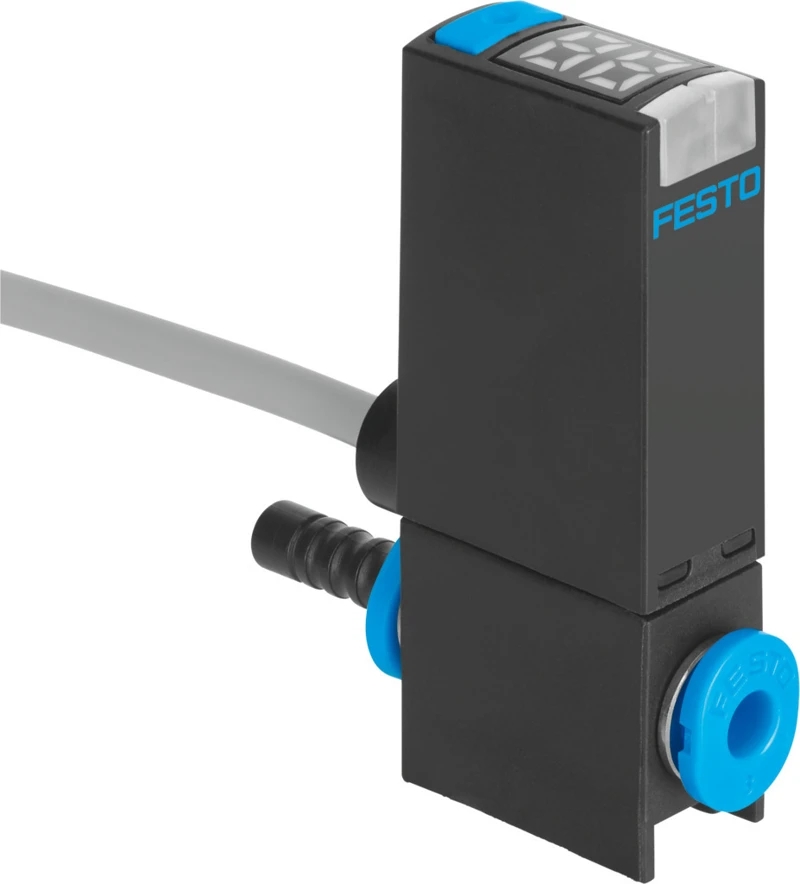

Pressure sensor SPAE
• The extremely small, extremely light, extremely convenient pressure transmitter SPAE monitors the pressure level of filtered compressed air from −1 … 0 and 0 … 10 bar.
• Ideal for vacuum monitoring with pick & place or for pressure monitoring in pneumatic applications.
• Electronic pressure sensor with piezoresistive pressure measuring cell, integrated signal processing, numeric pressure indicator in percent, operating key and a switching output, PNP/NPN switchable
• Display of minimum and maximum measured value
• All parameters entered can be transferred to other SPAEs (replicating function)
• Communication interface IO-Link®
