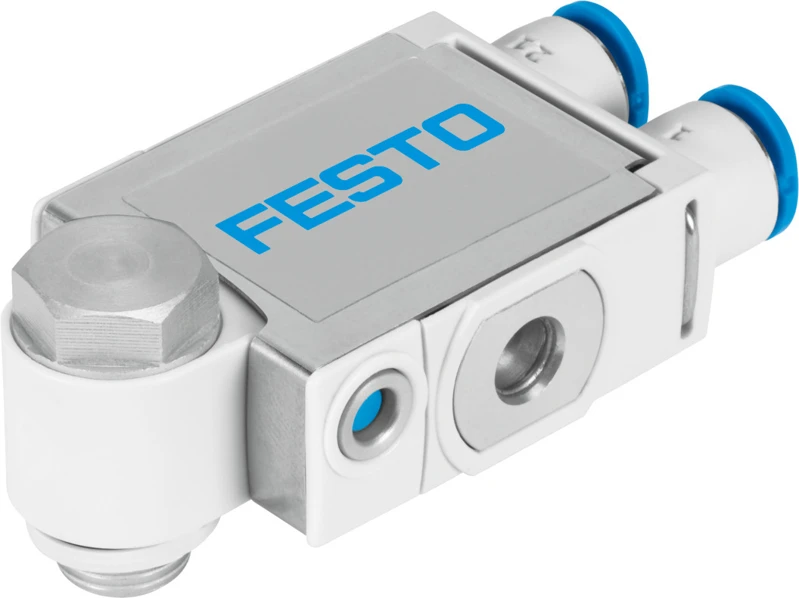

One-way flow control valve, VFOF-LE-BAH-G18-Q6
SKU: 8001459
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• One-way flow control valve VFOF
• Valve function Exhaust air one-way flow control function
• Selection of additional functions Actuated non-return valve
• Pneumatic connection, port 1 QS-6
• Pneumatic connection, port 2 G1/8
• Type of actuation Manual
• Pilot air port 21 QS-6
• Adjustment component Internal hexagon
• Type of mounting Screw-in
• Standard nominal flow rate in flow control direction 240 l/min
• Standard nominal flow rate in blocked direction 120 l/min ... 220 l/min
• Operating pressure 0.02 MPa ... 1 MPa
• Operating pressure 0.2 bar ... 10 bar
• Operating pressure 2.9 psi ... 145 psi
Buy currently uses Select Automation shop pricing and checkout.
One-way flow control valve VFOF
• Flat, rotatable shut-off valve with possible supply/exhaust air flow control combination.
• Functional combination of one-way flow control valve and piloted check valve
• High flow rate
• Can be rotated horizontally through 360° in assembled state
• Compact and can be operated from the side
