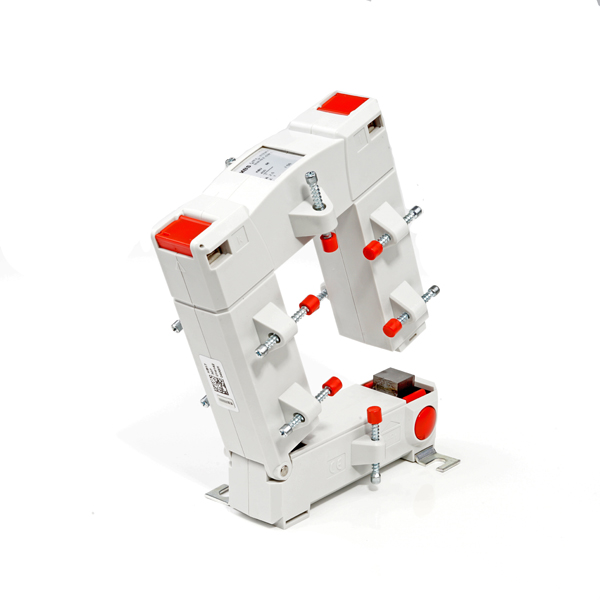

KBU 58 400/5A SPL/CORE CT cl 0.5
SKU: 80038
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
E is the isolation class.
Operating voltage maximum: 0.72 kV.
Frequency nominal: 50 Hz (others upon request).
Thermal short-time current nominal: Ith = 60 x In.
FS 5, up to 1500 A nominal current, is the over-current limiting factor.
MBS AG current transformers fully abide by VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1 standards.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
KBU 58 split-core current transformers (5A secondary - class 1),
Primary bar conductor: 50 x 80 mm max.,
MODEL KBU 58,
RATIO 400/5A,
ROUND CONDUCTOR Split core,
PRIMARY BAR CONDUCTOR 50 x 80 mm maximum,
DESCRIPTION Split-core current transformer,
DIMENSIONS(MM) (H)158 X (W)125 X (D)58,
CLASS 0.5,
VA 2.5
