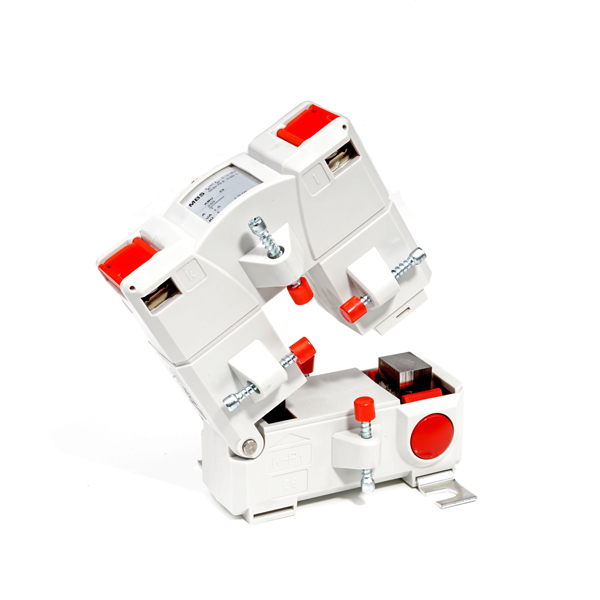

KBU 23 250/5A SPLIT CORE CT cl 1
SKU: 80044
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Category of isolation: E.
The highest voltage that can be used is 0.72 kV.
50Hz as the nominal frequency (others upon request).
For thermal short-time current, the nominal value is Ith = 60 x In.
Up to 1500 A nominal current, the over-current limiting factor (FS 5) is in place.
The MBS AG current transformers completely comply with VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
KBU 23 split core current transformers (5A secondary - class 1/3),
Round conductor: Split core,
Primary bar conductor: 20 x 30 mm max.,
MODEL KBU 23,
RATIO 250/5A,
ROUND CONDUCTOR Split core,
PRIMARY BAR CONDUCTOR 23 x 50 mm maximum,
DESCRIPTION Split-core current transformer,
DIMENSIONS(MM) (H)106 X (W)93 X (D)58,
CLASS 1,
VA 1.5,
DIMENSIONS (MM) (H) 106 x (W) 93 x (D) 58
