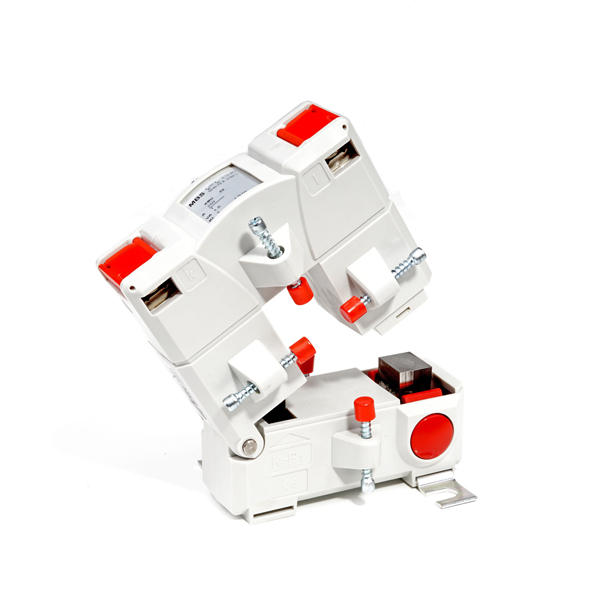

KBU 23 100/5A SPLIT CORE CT cl 3
SKU: 80048
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
E is the isolation class.
Operating voltage maximum: approximately 0.72 kV.
50 Hz is the nominal frequency: alternative frequencies available upon request.
Ith = 60 x In represents the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to 1500 A nominal current.
MBS AG current transformers fully abide by VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
KBU 23 split core current transformers (5A secondary - class 1/3),
Round conductor: Split core,
Primary bar conductor: 20 x 30 mm max.,
MODEL KBU 23,
RATIO 100/5A,
ROUND CONDUCTOR Split core,
PRIMARY BAR CONDUCTOR 20 x 50 mm maximum,
DESCRIPTION Split-core current transformer,
DIMENSIONS(MM) (H)106 X (W)93 X (D)58,
CLASS 3,
VA 1.25,
DIMENSIONS (MM) (H) 106 x (W) 93 x (D) 58
