KBU 58 800/5A SPLIT CORE CT cl 1
SKU: 80067
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

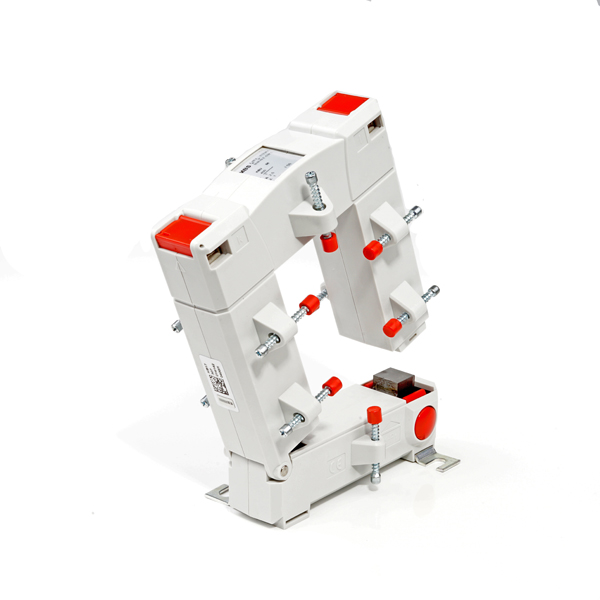

Split-core current transformer:
Without the need for additional mounting, the split measurement system makes it easier to install into already-existing panel boards.
To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
The device can be used as soon as the secondary conductors are connected.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
KBU 58 split core current transformers (5A secondary - class 1),
Primary bar conductor: 50 x 80 mm max.,
MODEL KBU 58,
RATIO 800/5A,
ROUND CONDUCTOR Split core,
PRIMARY BAR CONDUCTOR 50 x 80 mm maximum,
DESCRIPTION Split-core current transformer,
DIMENSIONS(MM) (H)158 X (W)125 X (D)58,
CLASS 1,
VA 7.5
General details:
Class of isolation: E.
Um 0.72 kV is the maximum operational voltage.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the overcurrent limiting factor up to a notional current of 1500 A.
The current transformers manufactured by MBS AG fully comply with DIN VDE 0414/1, DIN 42600, DIN EN 60044/1, and VBG 4.
