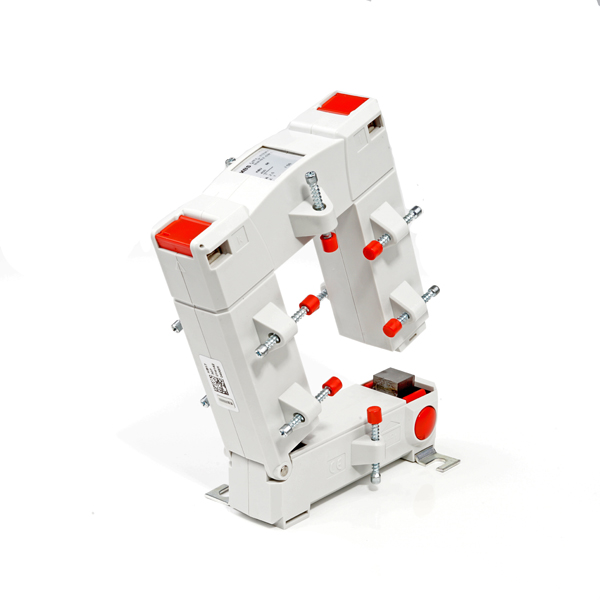

KBU 58 1000/5A SPLIT CORE CT cl 1
SKU: 80068
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Split-core current transformer:
This system allows for a straightforward installation into pre-existing panel boards without the need for additional mounting.
To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
The device can be used as soon as the secondary conductors are connected.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
KBU 58 split core current transformers (5A secondary - class 1)
Primary bar conductor: 50 x 80 mm max.
MODEL KBU 58,
RATIO 1000/5A,
ROUND CONDUCTOR Split core,
PRIMARY BAR CONDUCTOR 50 x 80 mm maximum,
DESCRIPTION Split-core current transformer,
DIMENSIONS(MM) (H)158 X (W)125 X (D)58,
CLASS 1,
VA 10
General details:
Class of isolation: E.
Up to 0.72 kV is the maximum operating voltage.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
MBS AG current transformers completely comply with VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1.
