KBU 816 2500/5A SPL/CORE CT cl 0.5
SKU: 80120
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

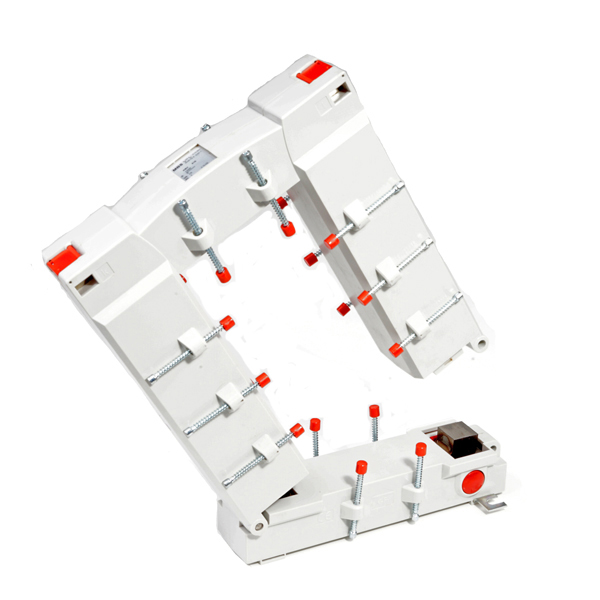

Current transformer with split core:
The concept of split measuring allows for an easy installation into pre-existing panel boards without the need for additional mounting.
To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
The unit is ready for use after the secondary wires are attached.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
KBU 816 split-core current transformers (5A secondary - class 1).
Primary bar conductor: 80 x 160 mm max.
MODEL KBU 816.
RATIO 2500/5A.
ROUND CONDUCTOR Split core.
PRIMARY BAR CONDUCTOR 80 x 160 mm maximum.
DESCRIPTION Split-core current transformer.
DIMENSIONS (MM) (H)243 X (W)195 X (D)79.
CLASS 0.5.
VA 15.
Features:
Class of isolation: E.
Um < 0.72 kV is the maximum operational voltage.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the overcurrent limiting factor up to a notional current of 1500 A.
The current transformers manufactured by MBS AG fully comply with DIN VDE 0414/1, DIN 42600, DIN EN 60044/1, and VBG 4.
