KBU 816 2500/5A SPL/CORE CT cl 1
SKU: 80151
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

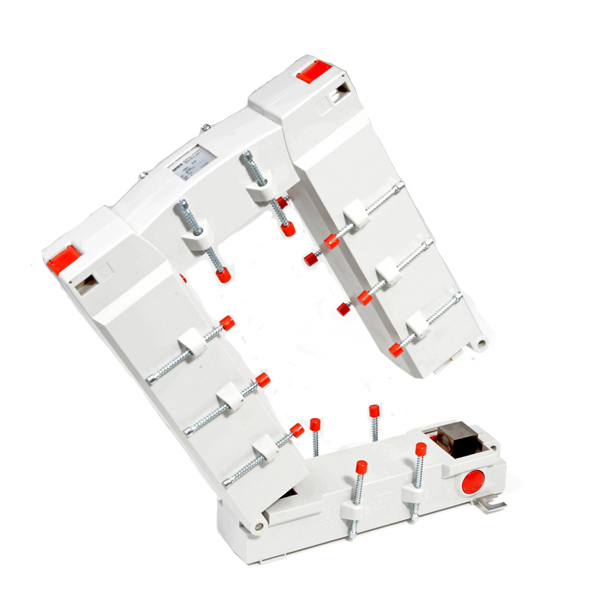

Split-core current transformer:
The split measuring method makes it easier to integrate into already-existing panel boards without the need for additional mounting.
The current transformer's locking mechanism can be easily opened, placed around the primary conductor, and locked to ensure that the circuit is closed.
The unit is operational after the secondary wires are connected.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
KBU 816 split core current transformers (5A secondary - class 1).
Primary bar conductor: 80 x 160 mm max.
MODEL KBU 816.
RATIO 2500/5A.
ROUND CONDUCTOR Split core.
PRIMARY BAR CONDUCTOR 80 x 160 mm maximum.
DESCRIPTION Split-core current transformer.
CLASS 1.
VA 15.
DIMENSIONS (MM) (H) 243 x (W) 195 x (D) 79.
Features:
E is the isolation class.
Operating voltage maximum: 0.72 kV.
Frequency nominal: 50 Hz (others upon request).
Thermal short-time current nominal: Ith = 60 x In.
FS 5, up to 1500 A nominal current, is the over-current limiting factor.
MBS AG current transformers fully abide by VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1 standards.
