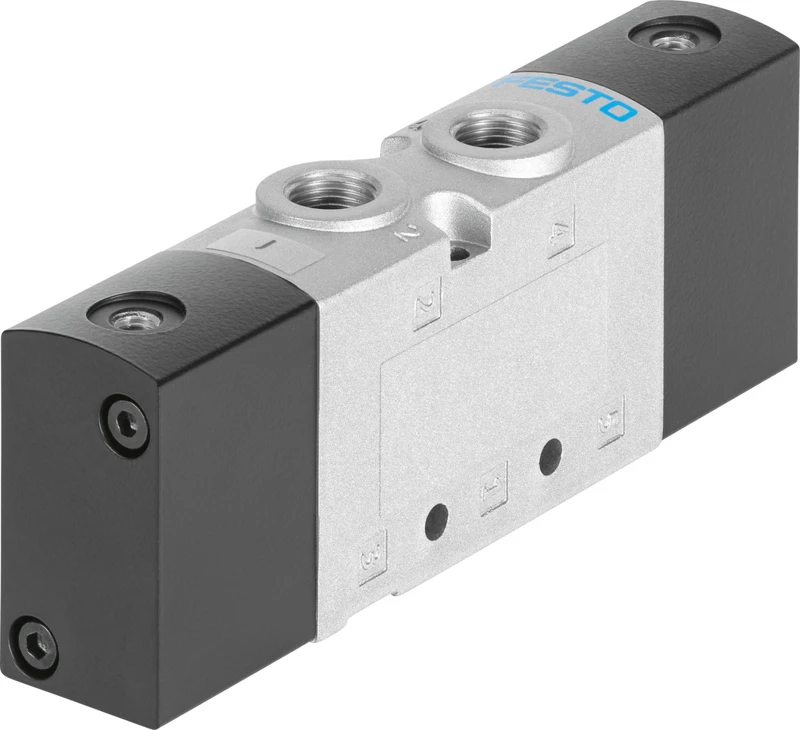

Pneumatic valve, VUWS-30
SKU: 8022018
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pneumatic valves VUWS/valve manifold assembly VTUS
• See datasheet for available configurations
• Type of actuation Pneumatic
• Valve size 31 mm
• Standard nominal flow rate (standardised to DIN 1343) 1500 l/min ... 2400 l/min
• Operating pressure -0.09 MPa ... 1 MPa
• Operating pressure -0.9 bar ... 10 bar
• Design Piston gate valve, Poppet seat
• Type of reset Mechanical spring, Pneumatic spring
• Approval c UL us - Recognized (OL)
Buy currently uses Select Automation shop pricing and checkout.
Pneumatic valve VUWS
• Sturdy, elegant valve that is easy to operate.
• Universal valve, sturdy and durable
• Pneumatically actuated
• Can be used as individual valves or manifold valves VTUS
