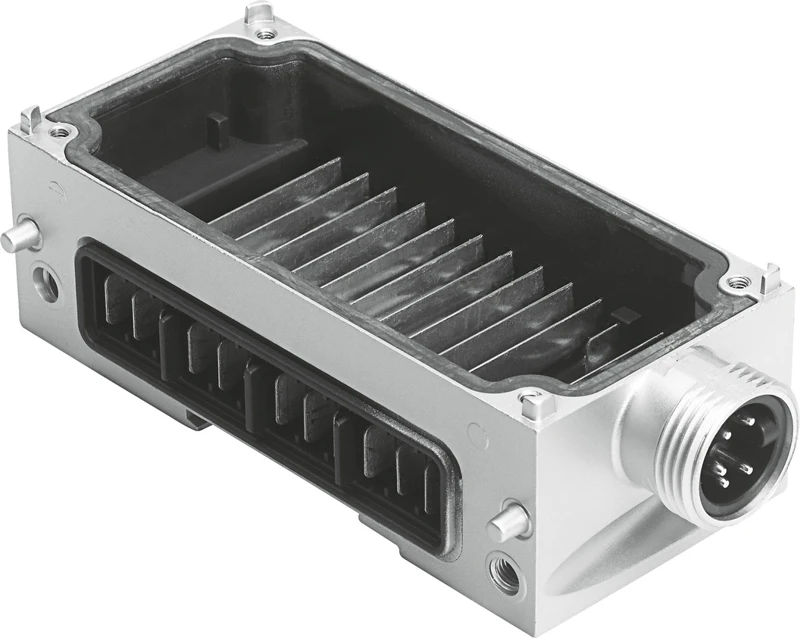

Interlinking block, CPX-M-GE-EV-Z-7/8-5POL-VL
SKU: 8022158
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Terminal CPX-P
• Interlinking block
• Type of mounting Angled fitting
• Product weight 187 g
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Note on materials RoHS-compliant
• Material housing Die-cast aluminium
• Electrical connection 5-pin, 7/8'' round plug connector
• Max. power supply 8 A
• Power supply Additional supply
Buy currently uses Select Automation shop pricing and checkout.
Terminal CPX-P
• An integrated, compact valve terminal and remote I/O in the control cabinet for process industry in zone 2, with everything from a single source and with protection class IP65.
• When combined with MPA valves, it provides a NAMUR-compatible process interface that is highly modular and flexible.
• Use of matching remote I/O and valve terminals in a control cabinet
• Combination with modules of the electrical terminal CPX, which can then be used for hybrid applications
• Unique modular structure
• Comprehensive integrated diagnostic and service functions
• Analogue inputs and outputs with HART protocol
