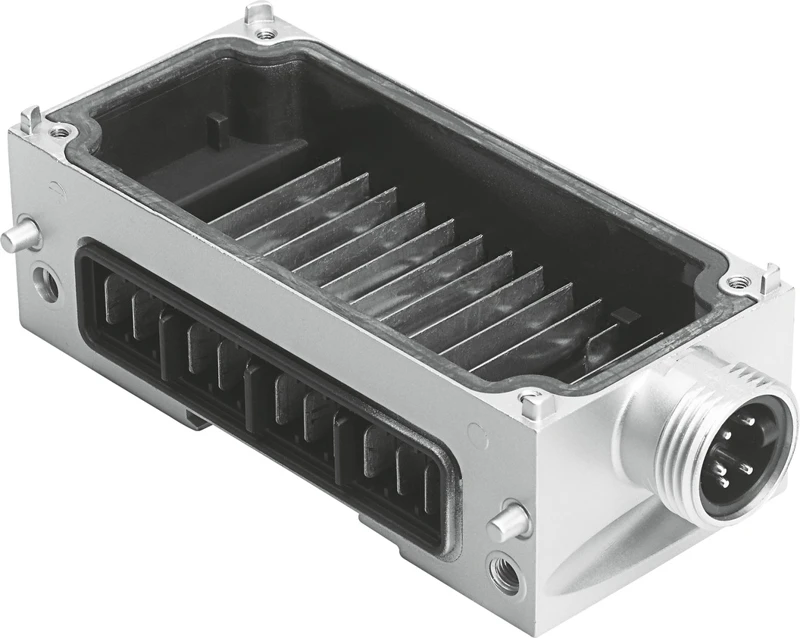

Interlinking block, CPX-M-GE-EV-S-7/8-5POL-VL
SKU: 8022165
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Modular electrical terminal CPX
• Accessories, Interlinking block
• Type of mounting Angled fitting
• Product weight 187 g
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Note on materials RoHS-compliant
• Material housing Die-cast aluminium
• Electrical connection 5-pin, 7/8'' round plug connector
• Max. power supply 8 A
• Power supply System power supply
Buy currently uses Select Automation shop pricing and checkout.
Modular electrical terminal CPX
• Choice of several valve terminals for different applications: MPA-S, MPA-L, VTSA/VTSA-F/VTSA-F-CB
• Economical from the smallest configuration up to the maximum number of modules
• Up to 9 electrical input/output modules plus bus node and pneumatic interface/electronics modules for valves
• Extensive range of functions and connection options for the electrical modules
• Choice of connection technology for technically and economically optimised connections
• Can be used as a dedicated remote I/O module
