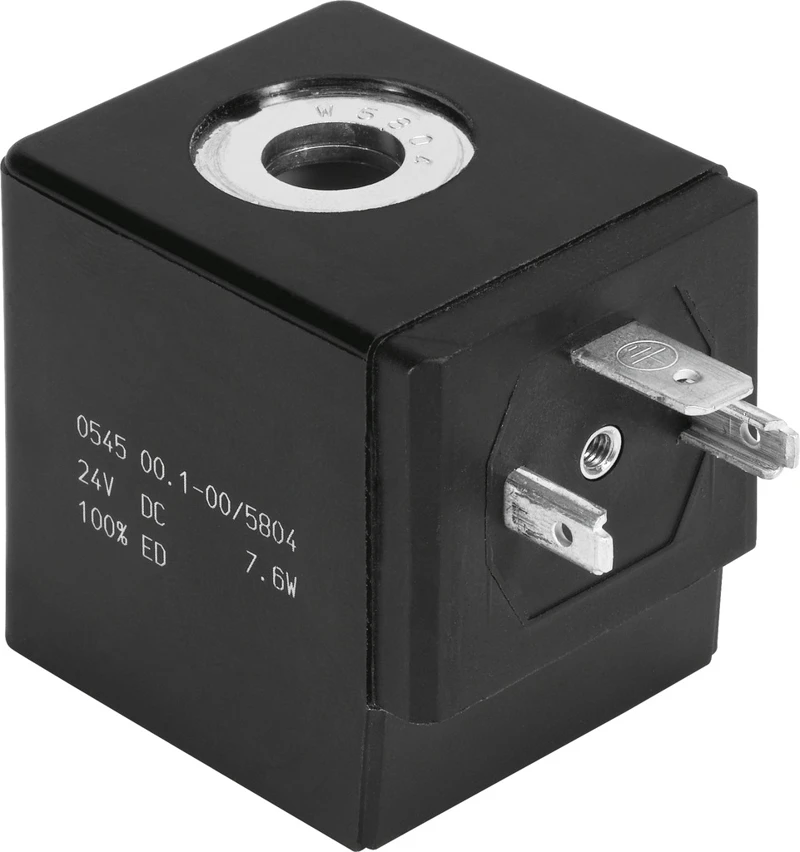

Solenoid coil, VACN-H1-A1-2A

Specifications • Solenoid coils VACN-H1, Without plug socket, plug pattern to EN 175301-803, type A • Mounting position optional • Switching position indicator no • Min. pick-up time 12 ms • Duty cycle 100% • Power factor (cos phi) 0.7 • Characteristic coil data 110 V AC: 50/60 Hz, pick-up power 36.0 VA, holding power 18.5 VA • Immunity to surge 2.5 kV • Pollution degree 3 • Permissible frequency fluctuations +/- 10% • Permissible voltage fluctuations +/- 10 % • CE mark To EU Low Voltage Directive • CE marking To UK regulations for electrical equipment • Restrictions for environmental and media temperature (with limited duty cycle) -20 ... 60° C • Corrosion resistance class CRC 4 - Very high corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Degree of protection IP65 • Note on degree of protection In assembled state • Ambient temperature -20 °C ... 50 °C
