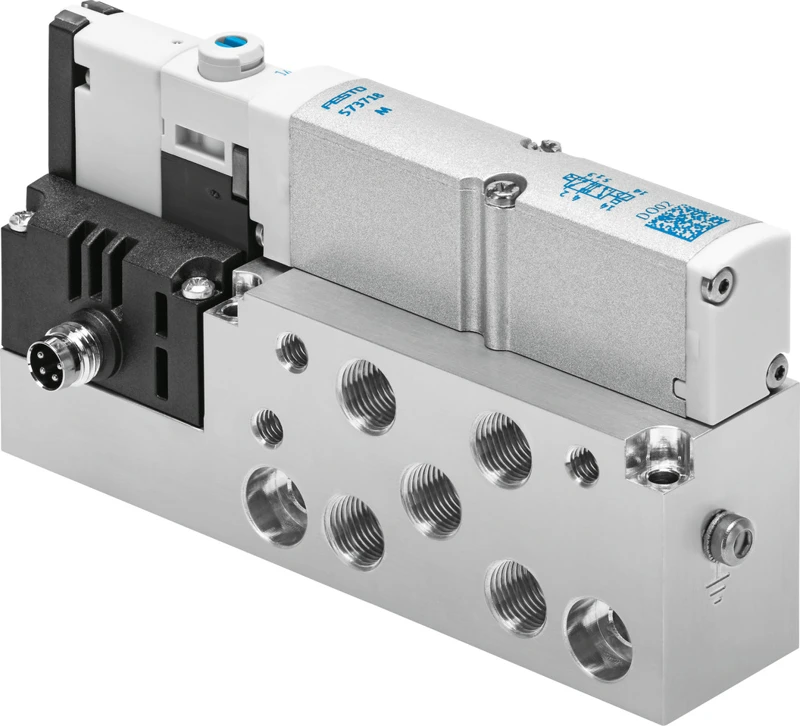

Solenoid valve, VMPA14-M1H-M-S-G1/8-PI

Specifications • Solenoid valves VMPA • External pilot air supply – Set comprising solenoid valve on individual sub-base • Valve function 5/2-way, monostable • Type of actuation Electric • Valve size 14 mm • Standard nominal flow rate (standardised to DIN 1343) 550 l/min • Pneumatic working port G1/8 • Operating voltage 24V DC • Operating pressure -0.09 MPa ... 1 MPa • Operating pressure -0.9 bar ... 10 bar • Design Piston gate valve • Type of reset Pneumatic spring • Approval c UL us - Recognized (OL)
