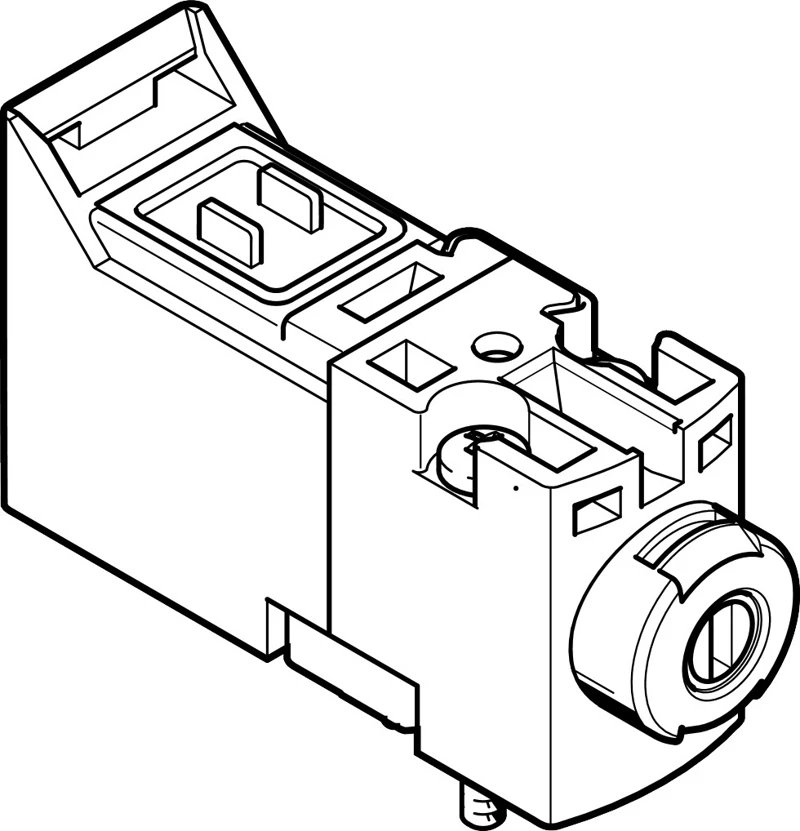

Solenoid valve, MHA1-M5R-3/2G-0.6-P3
SKU: 8025225
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MH1, sub-base valve with E-box
• Valve function 3/2-way, closed, monostable
• Type of actuation Electric
• Construction width 10 mm
• Standard nominal flow rate (standardised to DIN 1343) 10 l/min
• Pneumatic working port Sub-base
• Operating voltage 12V DC
• Operating pressure 0.15 MPa ... 0.8 MPa
• Operating pressure 1.5 bar ... 8 bar
• Operating pressure 21.75 psi ... 116 psi
• Design Poppet valve with spring return
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve MHA1, MHP1
• Small, fast and versatile and long-lasting: the compact miniature valve can actuate many tightly spaced channels or cylinders.
• Optional: compact electronics module with holding current reduction.
• Directly actuated poppet valve
• Miniature valve: grid dimension 10 mm
• Switching times down to 4 ms
• Sub-base valve
• Manifold block for 2 ... 10 valves
• Use as a pilot valve
• UL certification; same connections and cables as for the VUVG
