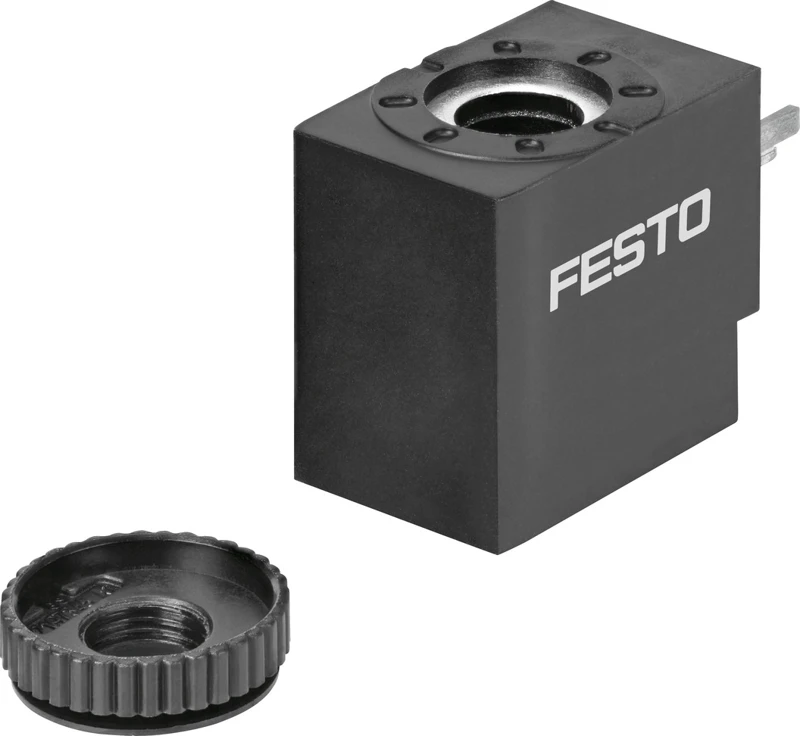

Solenoid valves, Accessories, VACS-C-C1-16B

Specifications • Solenoid valves VUVS • Accessories, Solenoid coil • Mounting position optional • Conforms to standard IEC 61010-1 • Duty cycle 100% • Insulation material class H • Characteristic coil data 110/120 V AC: 50/60 Hz, pick-up power 2.8 VA, holding power 1.9 VA • Immunity to surge 2.5 kV • Pollution degree 3 • Permissible voltage fluctuations +/- 10 % • Approval c UL us - Recognized (OL) • CE mark (see declaration of conformity) To EU Low Voltage Directive • CE marking (see declaration of conformity) To UK regulations for electrical equipment • Restrictions for environmental and media temperature -10 - 50°C • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Media temperature -10 °C ... 50 °C
