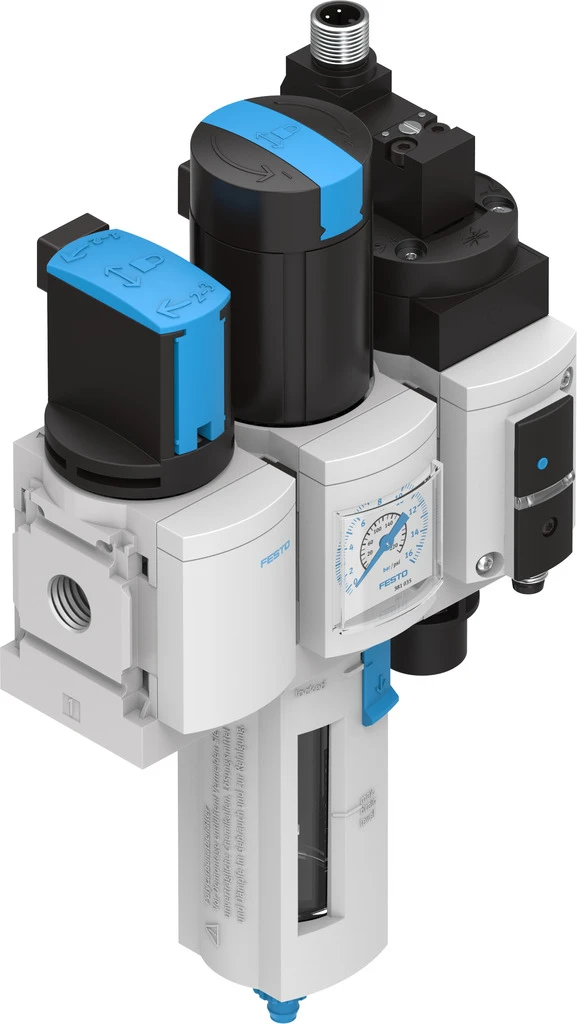

Service unit combination, MSB4-1/4:C3J1D14-WP
SKU: 8025358
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Service units MSB4/MSB6, MS series
• Size 4
• Series MS
• Actuator lock Rotary knob with detent can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 40 µm
• Condensate drain Manually rotating
• Design Soft-start valve, On/off valve, Filter regulator with pressure gauge
• Controller function Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
• Bowl guard Plastic bowl guard
Buy currently uses Select Automation shop pricing and checkout.
Service units MSB4/MSB6, MS series
• For filtered and unlubricated compressed air
• Supply pressure can be opened and closed
• Output pressure is infinitely adjustable within the pressure regulation range
• Flow rate 950 … 5500 l/min
• Operating pressure 0.8 … 18 bar
• Grade of filtration 40 μm
• Manual rotary condensate drain
• Combinations comprising:
1. Manually operated on/off valve, filter regulator with lockable pressure gauge,
mounting bracket
2. Manually operated on/off valve, filter regulator with lockable pressure gauge,
branching module with pressure switch, mounting bracket
3. Manually operated on/off valve, filter regulator with lockable pressure gauge,
solenoid actuated on/off valve with pressure sensor for operational status
indicator, mounting bracket
