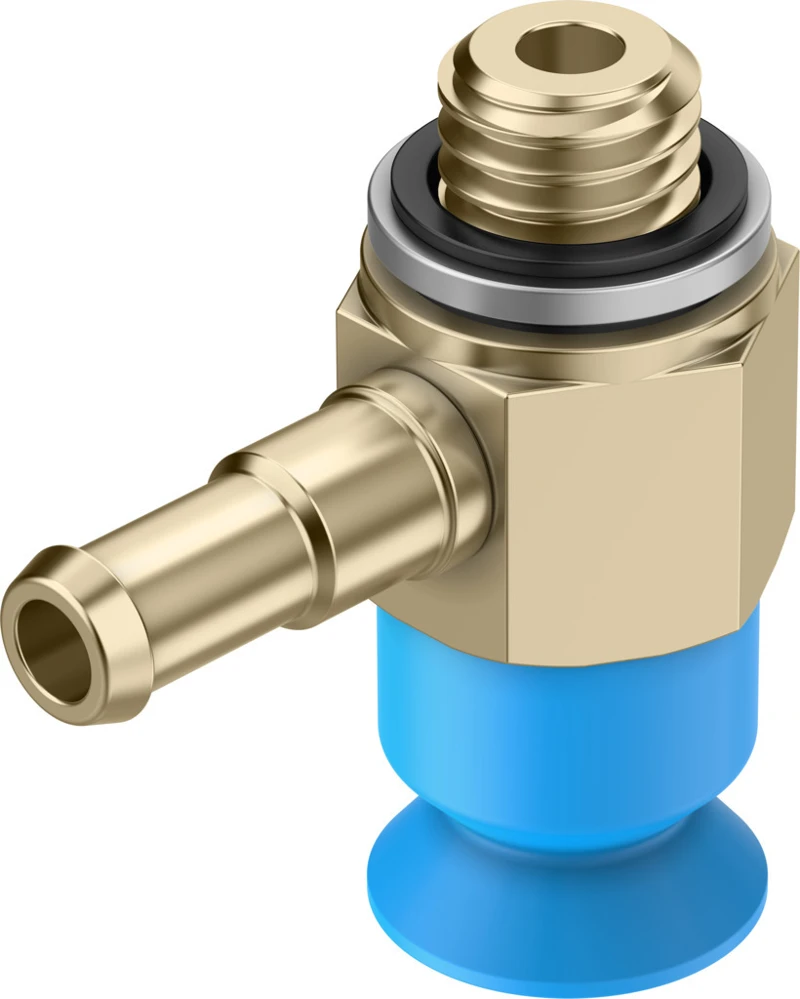

Suction cup complete, VAS-8-M5-S-PUR-B
SKU: 8025969
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Suction cups with connector VAS-...-S-PUR-B, vacuum connection on the side
• Height compensator for suction cup 0.9 mm
• Nominal size 2 mm
• Suction cup diameter 8 mm
• Suction cup volume 0.095 cm³
• Effective suction diameter 7.1 mm
• Position of connection From the side
• Mounting position optional
• Symbol 00991485
• Suction cup shape Round, flat
• Operating pressure -0.095 MPa ... 0 MPa
• Operating pressure -0.95 bar ... 0 bar
• Operating pressure -13.775 psi ... 0 psi
• Material suction cup TPE-U(PU)
Buy currently uses Select Automation shop pricing and checkout.
Suction cup with connection VAS, VASB
• The VAS(B) series is the right solution for transporting workpieces with a wide range of weights, surfaces and shapes.
• Sturdy and reliable
• Suction cups with fixed connecting thread
• 11 suction cup diameters
• Round suction cup, bellows
• Vacuum connection on top, on side
• Screw-in thread
