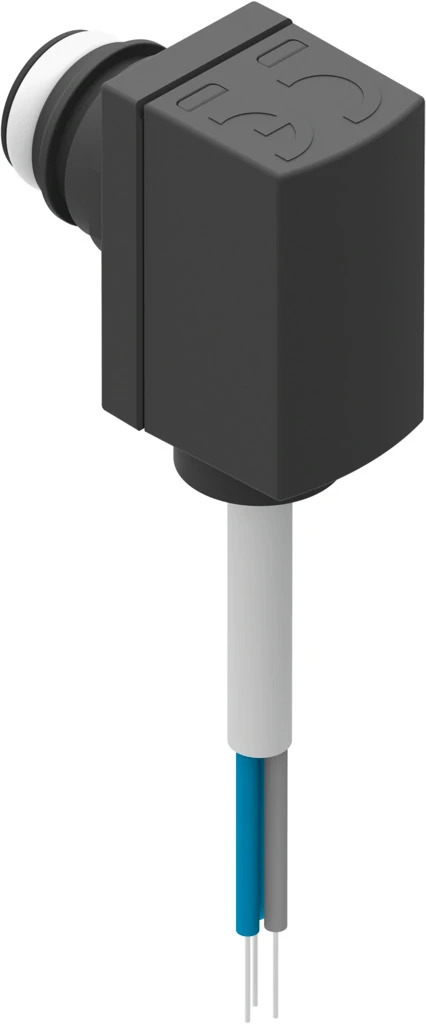

Pressure transmitter, SPTE-V1R-PC10-B-2.5K
SKU: 8025975
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators OVEL
• Accessories, Pressure transmitter SPTE
• Start value for pressure measuring range 0 bar
• End value for pressure measuring range -1 bar
• Pneumatic connection Cartridge 10 mm
• Electrical connection 3-wire - Cable - Open end
• Overload pressure 0.5 MPa
• Overload pressure 5 bar
• Overload pressure 72.5 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible
• Media temperature 0 °C ... 50 °C
• Ambient temperature 0 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.
Pressure transmitter SPTE
• Relative pressure or vacuum transmitter.
• For optional manifold assembly using a wall bracket.
• Piezoresistive pressure sensor
• Measured variable: relative pressure
• Cable length 2.5 m
• Compact: 8-bracket wall mount for manifold mounting
