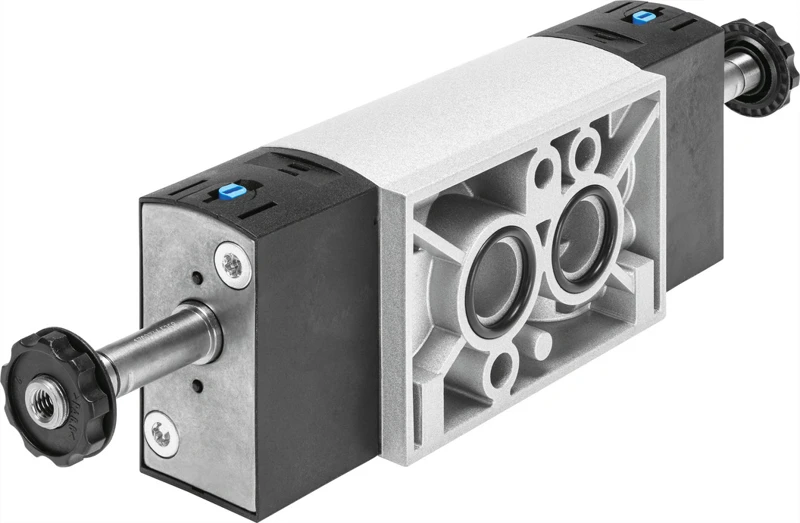

Solenoid valve, VSNC
SKU: 8026033
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VSNC
• See datasheet for available configurations
• Type of actuation Electric
• Construction width 32 mm
• Standard nominal flow rate (standardised to DIN 1343) 800 l/min ... 1350 l/min
• Pneumatic working port NAMUR port pattern
• Operating pressure 0.15 MPa ... 1 MPa
• Operating pressure 1.5 bar ... 10 bar
• Design Piston gate valve, Poppet seat
• Type of reset Mechanical spring
• Approval c UL us - Recognized (OL)
• Exhaust-air function With flow control option
• Sealing principle Soft
• Mounting position optional
• Conforms to standard VDI/VDE 3845 (NAMUR)
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VSNC
• The standard NAMUR valve VSNC is certified in accordance with the most common explosion standards the world over.
• It is a sturdy unit that combines great value for money with a modern design.
• Namur connection pattern to VDI/VDE 3845
• Rotatable seal for 3/2- or 5/2-way valve
• Wide choice of EX solenoid systems
• Sturdy and powerful
• Extended temperature range
• Excellent value for money
• All solenoid coils can be used on an armature tube
• The VSNC-...FN variant achieves greater energy efficiency with reduced power consumption
