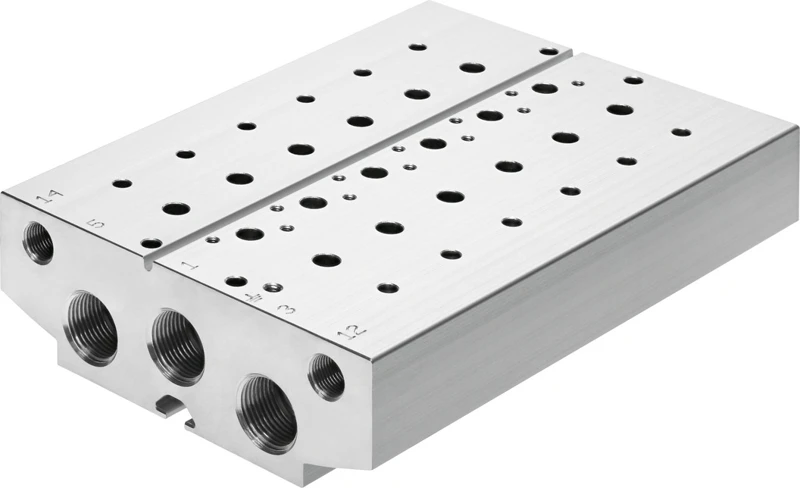

Manifold block, VABM-B10-25E-G12-4

Specifications • Solenoid valves VUVS/Valve manifold assembly VTUS • Manifold block, size 25 • Grid dimension 27.5 mm • Mounting position optional • Max. number of valve positions 4 • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Product weight 1521 g • Type of mounting With through-hole • Pilot air port 12 G1/8 • Pilot air port 14 G1/8 • Pneumatic connection, port 1 G1/2 • Pneumatic connection, port 3 G1/2 • Pneumatic connection, port 5 G1/2 • Note on materials RoHS-compliant • Material manifold rail Wrought aluminium alloy
