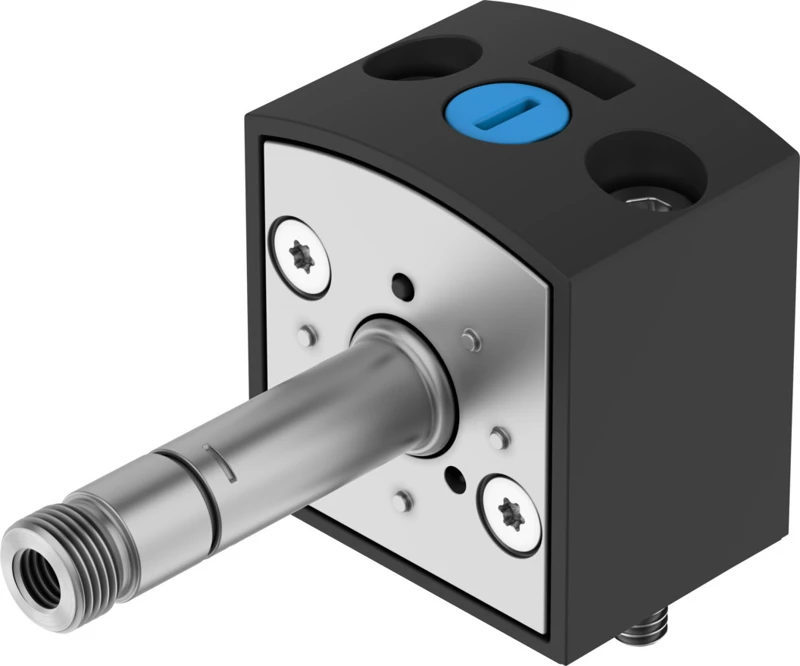

Solenoid valve, VSCS-B-M32C-MD-WB-F8

Specifications • Standards-based valve VSCS • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Construction width 30 mm • Standard nominal flow rate (standardised to DIN 1343) 34 l/min • Pneumatic working port Sub-base size 30 mm to ISO 15218 • Operating pressure 0.2 MPa ... 1 MPa • Operating pressure 2 bar ... 10 bar • Operating pressure 29 psi ... 145 psi • Design Sub-base valve • Type of reset Mechanical spring • Degree of protection IP65 • Sealing principle Sof
