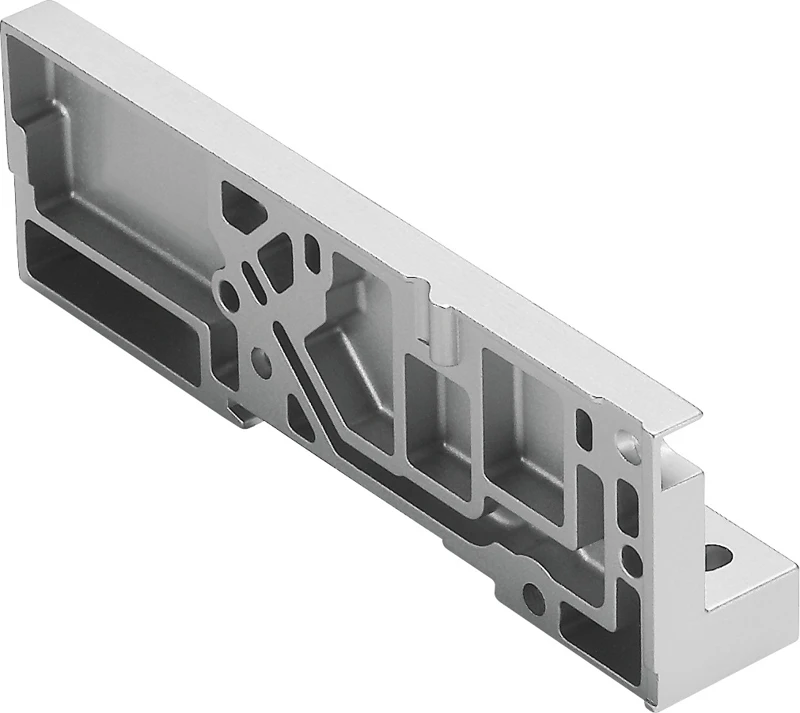

End plate, VMPA-EPR-G

Specifications • Accessories for Valve terminal MPA-S • End plate and fieldbus pneumatic interface • End plate, right, with port 82/84 for ducted exhaust air (M5 connecting thread) • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Product weight 55 g • Pilot exhaust port 82/84 M5 • Note on materials RoHS-compliant • Material end plate Die-cast aluminium
