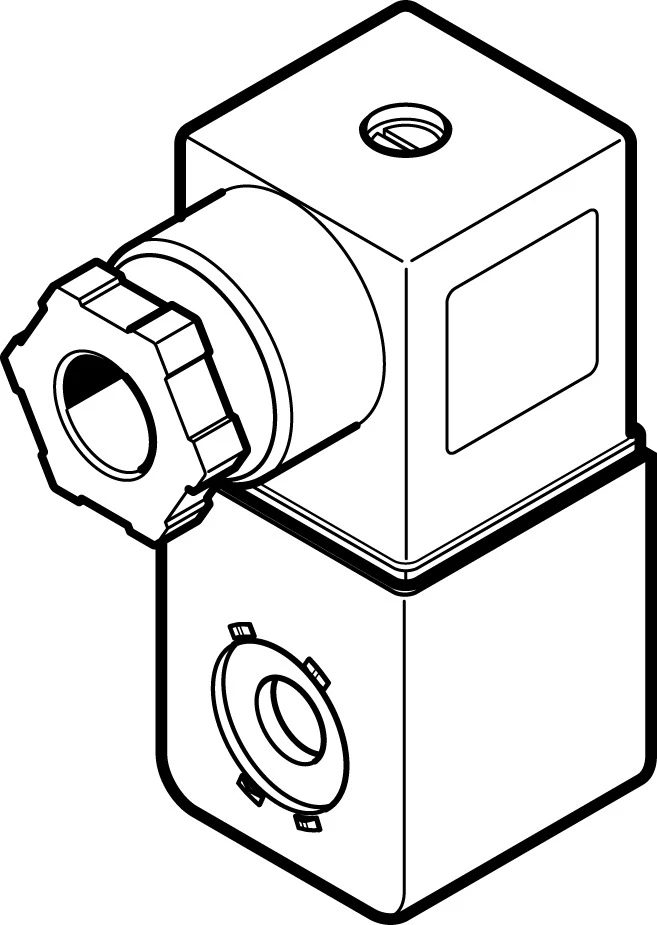

Solenoid valves, Accessories, VACN-N-A1-3A-EX2-N
SKU: 8029138
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VSNC, to NAMUR
• Accessories, Solenoid coil
• Type of actuation Electric
• Mounting position optional
• Duty cycle 100%
• Insulation material class F
• Insulation material class of enamelled wire H
• Characteristic coil data 230 V AC: 50 Hz, pick-up power 6.9 VA, holding power 4.1 VA, 230 V AC: 60 Hz, pick-up power 5.4 VA, holding power 3.3 VA
• Permissible voltage fluctuations +/- 10 %
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valves VSNC, to NAMUR
• Connection G1/4
• Flow rate 1250 l/min
• Voltage 12, 24, 48 V DC, 24, 48, 120, 230 V AC
• Namur connection pattern to VDE/VDI 3845
• Solenoid actuated, piloted
• Mechanical spring return
• Can be converted from 5/2- to 3/2-way function
• Selected types in accordance with ATEX directive for potentially explosive atmosphere
