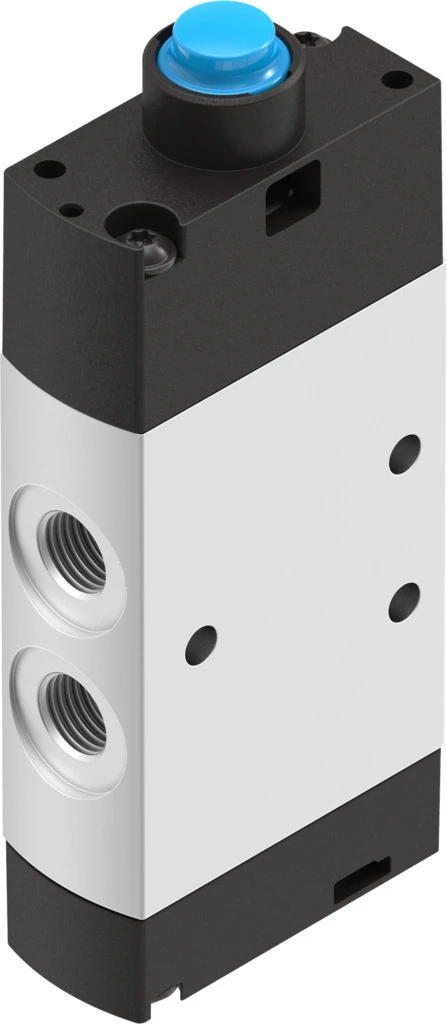

Stem actuated valve, VMEF-SCZ-M52-M-G18
SKU: 8031328
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mechanically actuated valve VMEF
• Valve function 5/2-way, monostable
• Type of actuation Mechanical
• Construction width 20 mm
• Standard nominal flow rate (standardised to DIN 1343) 750 l/min
• Pneumatic working port G1/8
• Operating pressure -0.095 MPa ... 1 MPa
• Operating pressure -0.95 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• Nominal size 5.2 mm
• Instructions on use Do not use as a mechanical stop
• Sealing principle Soft
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.
Mechanically actuated valve VMEF
• Available as just a stem actuated valve or with roller lever or tilting roller lever.
• Some versions are also suitable for vacuum operation.
• Durable thanks to tried-and-tested piston slide and disc seat valve technology
• Robust metal housing
• Outstanding pneumatic performance
• Attractive price
• Ergonomic and safe operation
• Minimal actuating forces
• Modern design
• Reverse operation possible
