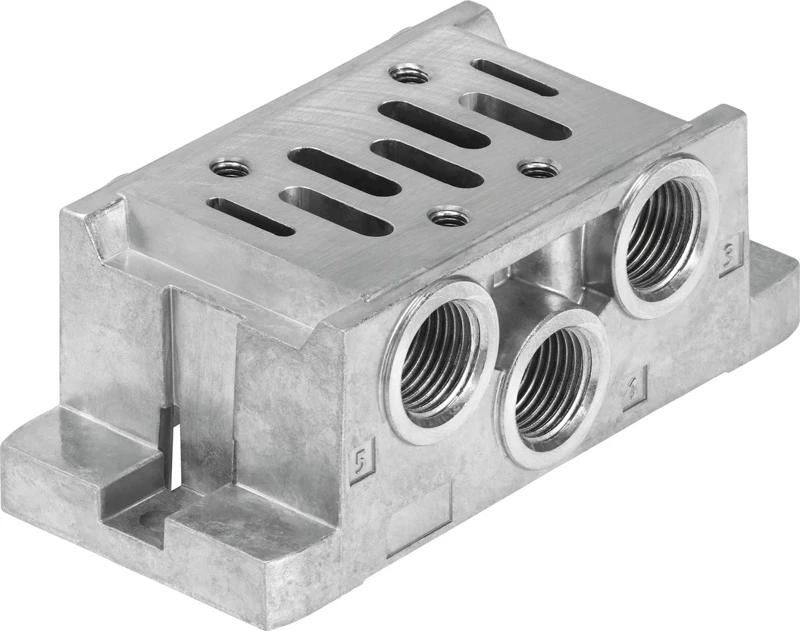

Sub-base, VABS-S1-1S-N38
SKU: 8032643
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based valves to ISO 5599-1, individual sub-base
• Accessories, Designation to VDMA
• Construction width 48 mm
• Based on standard ISO 5599-1
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Operating pressure 0 MPa ... 1.6 MPa
• Operating pressure 0 bar ... 16 bar
• Pilot pressure 0 MPa ... 1 MPa
• Pilot pressure 0 bar ... 10 bar
• Suitability for vacuum yes
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Standards-based valves to ISO 5599-1, individual sub-base
• Accessories, Designation to VDMA
• Construction width 48 mm
• Based on standard ISO 5599-1
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Operating pressure 0 MPa ... 1.6 MPa
• Operating pressure 0 bar ... 16 bar
• Pilot pressure 0 MPa ... 1 MPa
• Pilot pressure 0 bar ... 10 bar
• Suitability for vacuum yes
