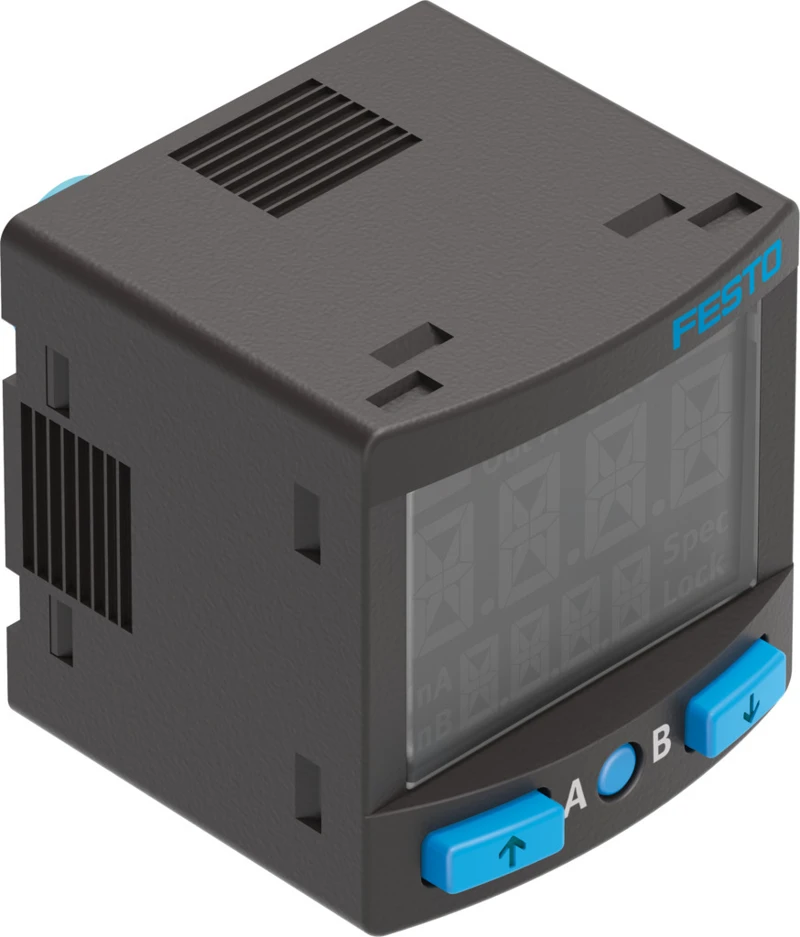

Pressure sensor, SPAN-B2R-Q4-PN-PN-L1
SKU: 8035553
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure sensors SPAN
• Measured variable Relative pressure
• Measurement method Piezoresistive pressure sensor
• Start value for pressure measuring range -0.1 MPa
• Start value for pressure measuring range -1 bar
• Start value for pressure measuring range -14.5 psi
• End value for pressure measuring range 0.1 MPa
• End value for pressure measuring range 1 bar
• End value for pressure measuring range 14.5 psi
• Max. overload pressure 5 bar
• Overload pressure 0.5 MPa
• Overload pressure 5 bar
• Overload pressure 72.5 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Switching element function N/C or N/O contact, switchable
• Pneumatic connection For tubing O.D. 4 mm
Buy currently uses Select Automation shop pricing and checkout.
Pressure sensor SPAN
• The extremely compact and attractively priced pressure sensor SPAN is amazingly flexible.
• It can be used in a wide variety of applications thanks to switchable electrical outputs and a very wide range of options for pressure measuring ranges and pneumatic connections.
• For monitoring compressed air and non-corrosive gases
• For network monitoring, regulator monitoring, leak testing, object detection
• Relative measurement method based on a piezoresistive measuring cell
• Serial communication integrated using IO-Link® 1.1
• Compact design 30x30 mm
• High-contrast display with blue backlight
