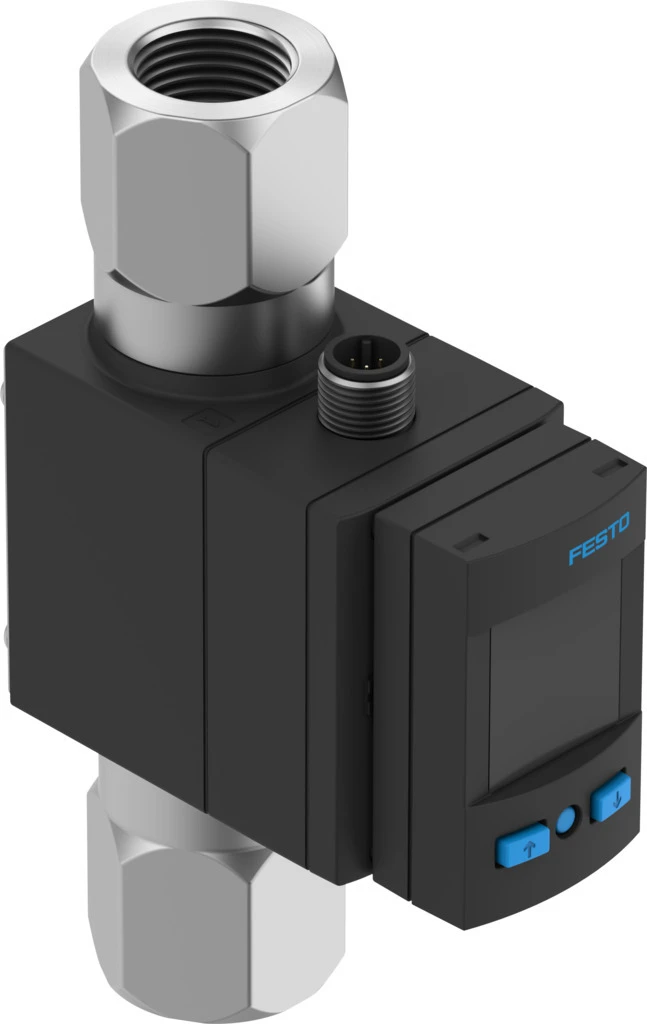

Flow sensor, SFAW-100-TG34-E-PNLK-PNVBA-M12
SKU: 8036875
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Flow sensors SFAW
• Measured variable Flow rate, Temperature
• Flow direction Unidirectional, P1 -> P2
• Measurement method Flow: Vortex, Temperature: PT1000
• Start value for flow rate measuring range 5 l/min
• End value for flow rate measuring range 100 l/min
• Operating pressure 0 MPa ... 1.2 MPa
• Operating pressure 0 bar ... 12 bar
• Operating pressure 0 psi ... 174 psi
• Operating medium Liquid media - Water - Neutral fluids
• Fluid connection Female thread G3/4
Buy currently uses Select Automation shop pricing and checkout.
Flow sensor SFAW
• Simple monitoring with the flow sensor SFAW as it measures the flow rate, consumption and temperature of liquid media.
• Its easy operation and easily readable display make the SFAW highly reliable.
• Cooling circuit monitoring, leakage or line break monitoring, process water monitoring, fill level monitoring
• Input connection: clamped terminal connection DN15, DN20, barbed hose fitting 13 mm, female thread G1/2, G3/4, G1, user-specific connection
• With optional integrated temperature sensor
• Connection to higher-level systems via 2 switching outputs, an analogue output and/or an IO-Link® interface
• Certification: RCM, c UL us Listed (OL)
• Rotatable display, 90° anticlockwise and 180° clockwise
