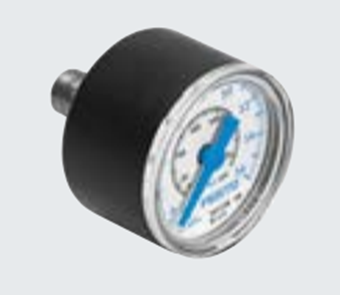

Pressure gauge, PAGN-40-1M-G18PA
SKU: 8037109
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure gauge PAGN
• Nominal size 40
• Operating pressure [MPa] 0 ... 1
• Pneumatic connection G1/8
• Temperature range –20 ... +60°C
• Operating medium Inert gases, Neutral fluids
• Note on the operating/pilot medium, No oxygen, No acetylene
• Design Bourdon tube pressure gauge
• Conforms to standard EN 837-1
• Type of mounting In-line installation
• Connection position Centred, rear
• Ambient temperature [°C] –20 ... +60
Buy currently uses Select Automation shop pricing and checkout.
Pressure gauge PAGN
• Pressure gauge to DIN EN 837-1 for attaching to a push-in fitting with display range up to 16 bar/230 psi.
• Designs based on EN 837-1
• Display units bar, psi, Mpa
