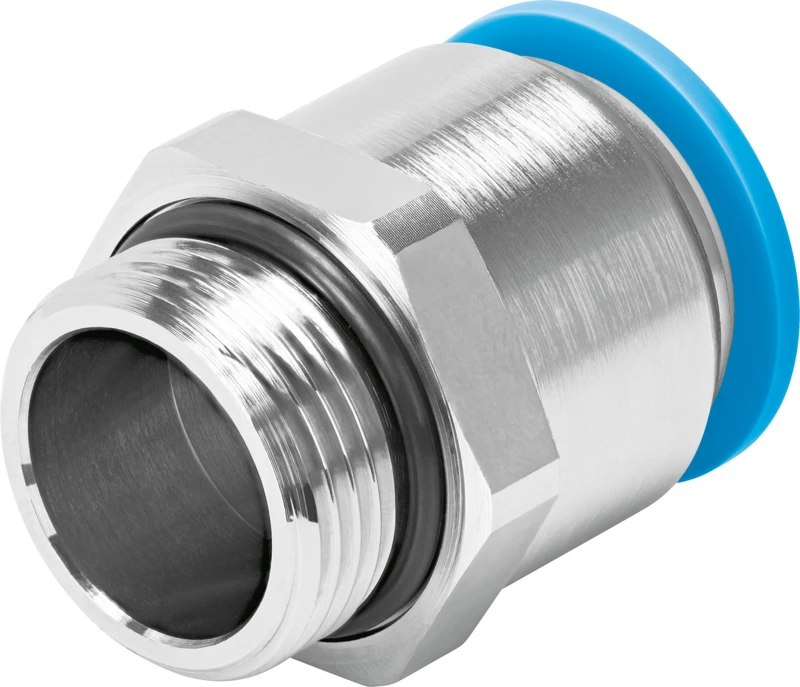

Push-in fitting, QS-G3/4-22
SKU: 8040613
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBG, ISO 15552
• Accessories, Push-in fitting
• Pneumatic connection, port 1 Male thread G3/4
• Pneumatic connection, port 2 For tubing outside diameter of 22 mm
• Temperature-dependent operating pressure -0.95 bar - 14 bar
• Ambient temperature -20 °C - 80 °C
• Nominal size 20 mm
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBG, ISO 15552
• Standards-based cylinders to ISO 15552 (corresponds to the withdraw standards ISO 6431, DIN ISO 6431, VDMA24562, NFE49003.1 and UNI 10290)
• Sturdy tie rod design
• Double-acting
• For contactless position sensing
• Optionally with protection against rotation
• EX4: for use in potentially explosive areas
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere
• Three types of cushioning available: Elastic cushioning: elastic cushioning rings/plates at both ends, PPS cushioning: pneumatic cushioning, self-adjusting at both ends, PPV cushioning: pneumatic cushioning, adjustable at both ends
