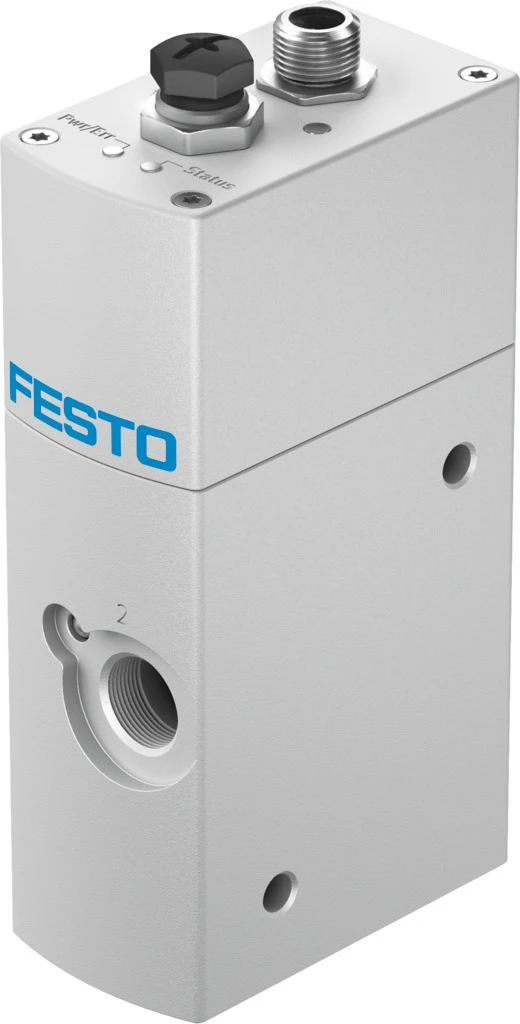

Proportional flow control valve, VPCF-6-L-8-G38-10-A4-E-EX2

Specifications • Proportional flow control valve VPCF • Valve function 3-way proportional flow control valve • Design Piston gate valve, With integrated pressure sensors • Type of piloting Direct • Type of actuation Electric • Type of reset Magnetic spring • Symbol 00995603 • Flow direction Non-reversible • Mounting position optional • Sealing principle Hard • Nominal size 6 mm • Short circuit current rating yes • Display type LED • Flow range 0 l/min ... 1500 l/min • Pneumatic connection, port 1 G3/8 • Flow rate control range 30 l/min - 1500 l/min • Signal range analogue input 4 - 20 mA • Current rating per output 100 mA
