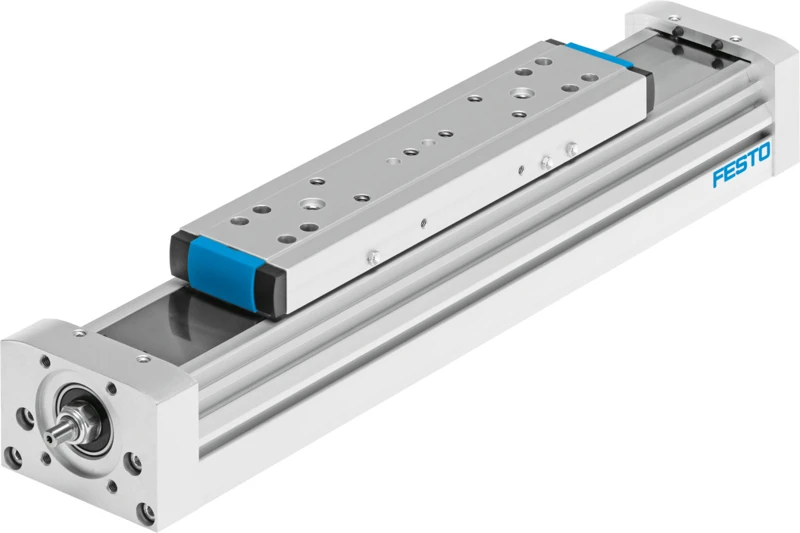

Ball screw axis, ELGA-BS-KF-120-300-0H-25P-ML
SKU: 8041845
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Spindle axes ELGA-BS-KF, with recirculating ball bearing guide
• Working stroke 300 mm
• Size 120
• Stroke reserve 0 mm
• Spindle diameter 25 mm
• Spindle pitch 25 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With ball screw
• Type of motor Stepper motor, Servo motor
• Spindle type Ball screw
• Max. feed force Fx 3400 N
• Repetition accuracy ±0.02 mm
Buy currently uses Select Automation shop pricing and checkout.
Ball screw axis ELGA-BS-KF
• Powerful, dynamic and protected by a sturdy cover strip.
• The precision, durability and dynamic response of the spindle axis ELGA-BS make it very efficient for positioning tasks in challenging conditions at strokes of up to 3000 mm.
• Internal, precision recirculating ball bearing guide with high load capacity for high torque loads
• Axis for high repeat accuracy
• For the highest requirements in terms of feed force and accuracy
• Guide and ball screw protected by cover strip
• Speeds up to 2 m/s with high acceleration up to 15 m/s²
• Space-saving position sensing
• Flexible motor mounting
• 34 preconfigured types and modular product system for custom variants
• Strokes of up to 3 m possible
