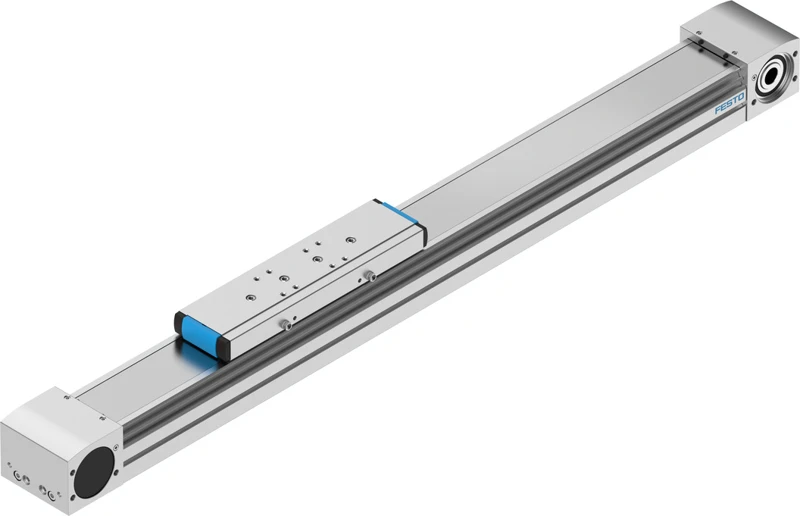

Toothed belt axis, ELGA-TB-KF-80-500-0H
SKU: 8041859
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axes ELGA-TB-KF, with recirculating ball bearing guide
• Effective diameter of drive pinion 39.79 mm
• Working stroke 500 mm
• Size 80
• Stroke reserve 0 mm
• Toothed-belt pitch 5 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Functional principle of measuring system Incremental
• Max. acceleration 50 m/s²
• Max. speed 5 m/s
• Repetition accuracy ±0.08 mm
• Max. feed force Fx 800 N
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis ELGA-TB-KF
• As a sturdy and very fast toothed belt axis, the ELGA-TB will master your tasks effortlessly.
• Its internal guides (recirculating ball bearing, roller and plain-bearing guides) and sturdy cover strip make it the perfect choice to handle even the toughest of applications.
• Recirculating ball bearing guide for high loads and torques
• High feed forces
• Precision guide rail with high load capacity
• Speeds up to 5 m/s with high acceleration up to 50 m/s²
• Optional: Food-safe (for further information, see www.festo.com/certificates/ELGA_KF)
• The motor can be flexibly mounted on 4 sides
• Guide and toothed belt protected by cover band
• 22 types in stock with short delivery times and modular products for custom variants
• Long strokes of up to 8.5 m possible
