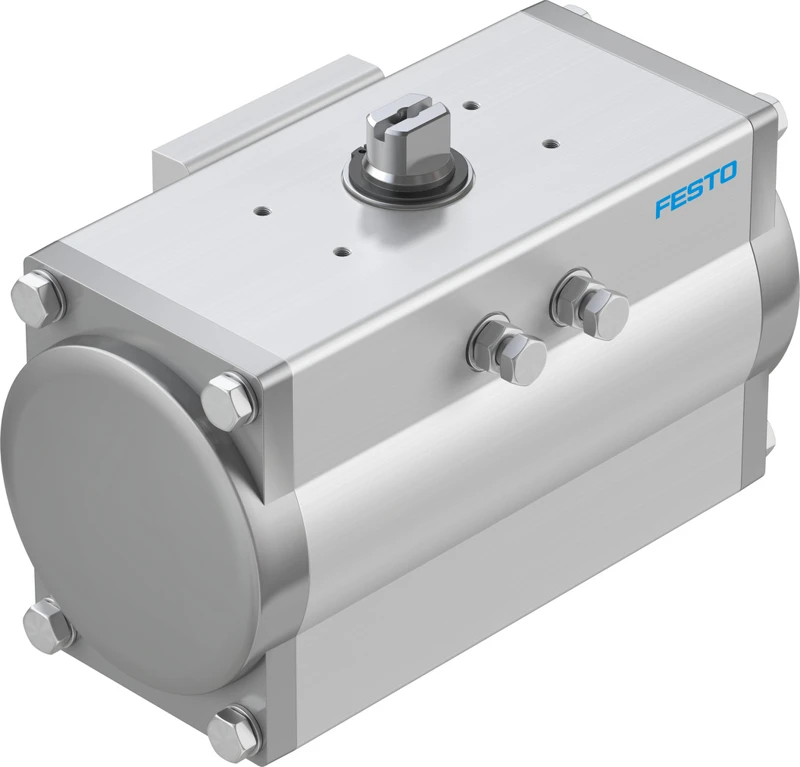

Semi-rotary drive, DFPD-120
SKU: 8042188
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Quarter turn actuators DFPD for the chemical industry, single-acting
• See datasheet for available configurations
• Size of valve actuator 120
• Flange hole pattern F07, F0507
• Swivel angle 90 deg ... 180 deg
• End-position adjustment range at 0° -5 deg ... 5 deg
• End-position adjustment range at nominal swivel angle -5 deg ... 5 deg
• Shaft connection depth 19 mm
• Fitting connection conforms to standard ISO 5211
• Mounting position optional
• Mode of operation Double-acting, Single-acting
• Design Rack and pinion
Buy currently uses Select Automation shop pricing and checkout.
Quarter turn actuator DFPD
• The DFPD series features a rack and pinion combination with a constant torque characteristic across the entire swivel range.
• The quarter turn actuators DFPD are perfect for automating your butterfly valves, ball valves and dampers.
• Uniform torque characteristic across the entire rotation angle of 90° with the double-acting version
• Version with swivel angle 120°, 135°, 180° for the sizes 40, 120, 240, 480, double-acting
• Process valve connection to ISO 5211
• Mounting hole pattern to VDI/VDE 3845
• Sturdy, non-slip and easy-to-clean aluminium housing
• Long service life, low wear
• Increased corrosion protection
