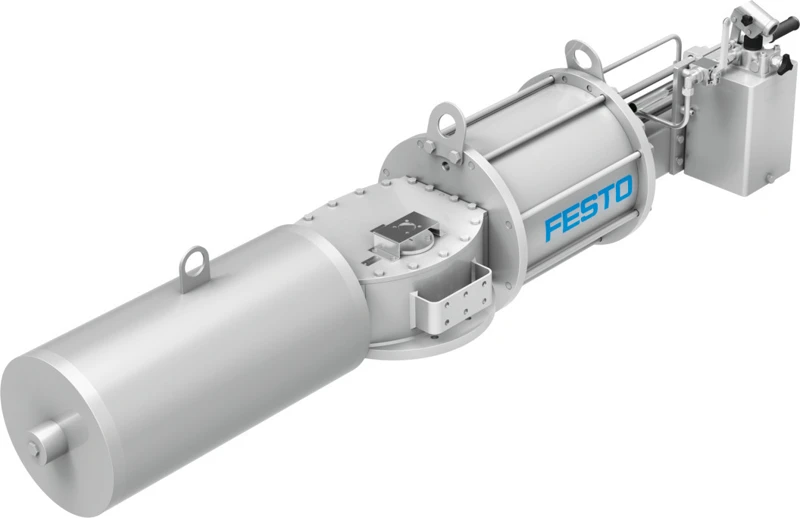

Semi-rotary drive, DFPD-HD-9000-
SKU: 8042201
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Quarter turn actuators DFPD-HD
• Size of valve actuator 9000
• Flange hole pattern F25
• Piston diameter 235 mm, 280 mm, 335 mm, 385 mm, 435 mm
• Swivel angle 90 deg
• End-position adjustment range at 0° -5 deg ... 5 deg
• End-position adjustment range at nominal swivel angle -5 deg ... 5 deg
• Shaft connection depth 160 mm
• Fitting connection conforms to standard ISO 5211
• Cushioning No cushioning
• Mounting position optional, Horizontal
Buy currently uses Select Automation shop pricing and checkout.
Quarter turn actuator DFPD-HD
• Ideal for applications with high torques up to max. 32,000 Nm
• Extremely modular for a variety of uses: configurable spring forces, a choice between right or left direction of rotation and mechanical or hydraulic manual override
• With safety functions
• Namur connection pattern to VDI/VDE 3845
• Variants to EU Explosion Protection Directive (ATEX)
