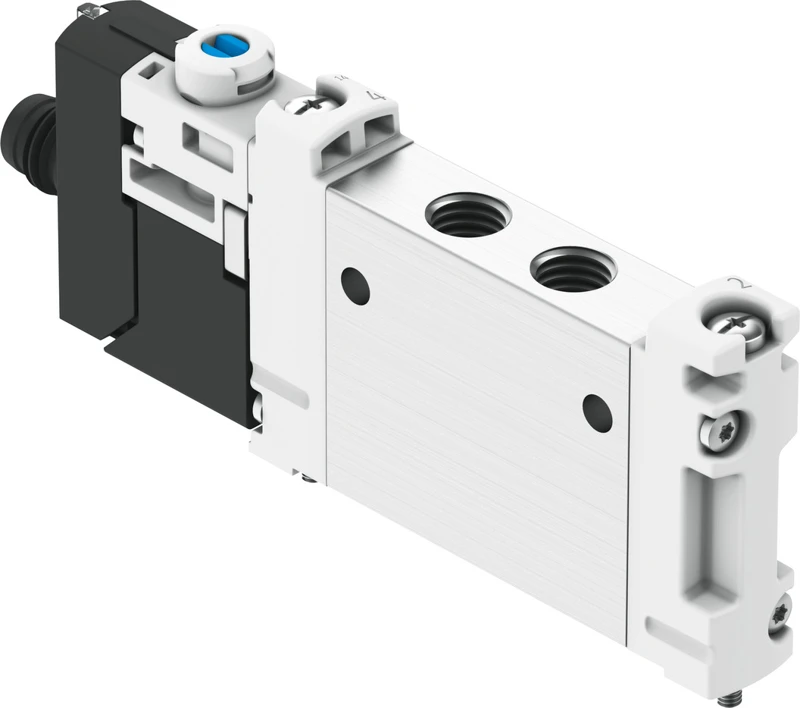

Solenoid valves, VUVG-LK10-M52-AT-M7-1R8L-S
SKU: 8042551
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VUVG
• Valve function 5/2-way, monostable
• Type of actuation Electric
• Valve size 10 mm
• Standard nominal flow rate 340 l/min
• Pneumatic working port M7
• Operating voltage 24V DC
• Operating pressure 0.25 MPa ... 0.7 MPa
• Operating pressure 2.5 bar ... 7 bar
• Design Piston slide with sealing ring
• Type of reset Pneumatic spring
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valves VUVG
• Connection technology via electrical connection box (E-box)
• Specific I-Port interface from Festo for fieldbus node
• IO-Link® mode for direct connection to a higher-level IO-Link® master
• Festo-specific I-Port interface with interlock
• Variable multi-pin plug connection using Sub-D or flat cable
• Sturdy and durable metal components
• Reversible piston spool valves
• Up to 24 valve positions
