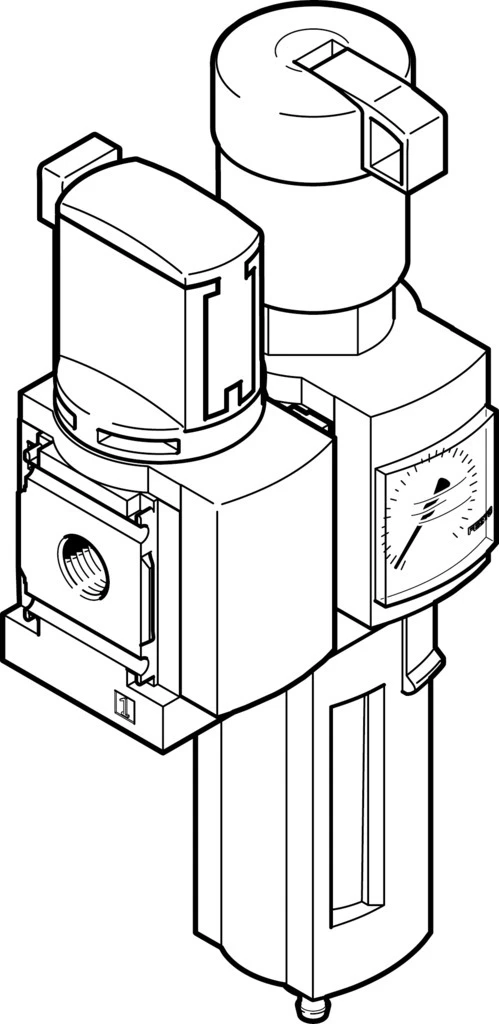

Service unit combination, MSB4-1/4:C3:J120-WP
SKU: 8042668
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Service unit combination MSB4
• Size 4
• Series MS
• Actuator lock Rotary knob with detent can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 40 µm
• Condensate drain Manually rotating
• Design On/off valve, Filter regulator with pressure gauge
• Controller function Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
• Bowl guard Plastic bowl guard
• Symbol 00991755
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Pneumatic connection, port 1 G1/4
• Standard nominal flow rate (standardised to DIN 1343) 1150 l/min
• Pressure regulation range 0.5 bar - 7 bar
Buy currently uses Select Automation shop pricing and checkout.
Service unit combination MSB4
• Perfect compressed air preparation!
• With its large product range, highly functional components and a wide choice of services, the MS series from Festo offers a complete concept for compressed air preparation – for both standard applications and application-specific solutions.
• Grid dimension 40mm
• Predefined or freely configurable combinations of service unit components
• Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module
