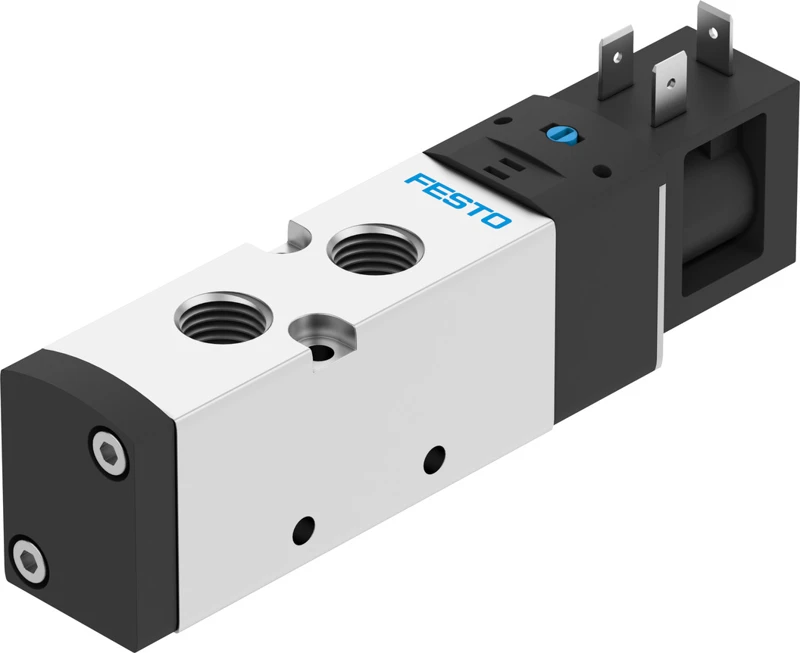

Solenoid valves, VUVS-LK25-M52-AD-G14-1B2-S
SKU: 8043218
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VUVS
• Valve function 5/2-way, monostable
• Type of actuation Electric
• Valve size 26.5 mm
• Standard nominal flow rate 1000 l/min
• Pneumatic working port G1/4
• Operating voltage 24V DC
• Operating pressure 0.15 MPa ... 0.8 MPa
• Operating pressure 1.5 bar ... 8 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
• Degree of protection IP65, With plug socket, To IEC 60529
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valves VUVS
• Width of valves 20 (21 mm), 25 (26.5 mm), 30 (31 mm), flow rate up to 2300 l/min
• In-line valves can be used as individual valves or manifold valves
• Variable pressure zones
• Universal valve, sturdy and durable
• Low-cost, no limitations with regard to performance
• Can be used as a valve manifold VTUS
