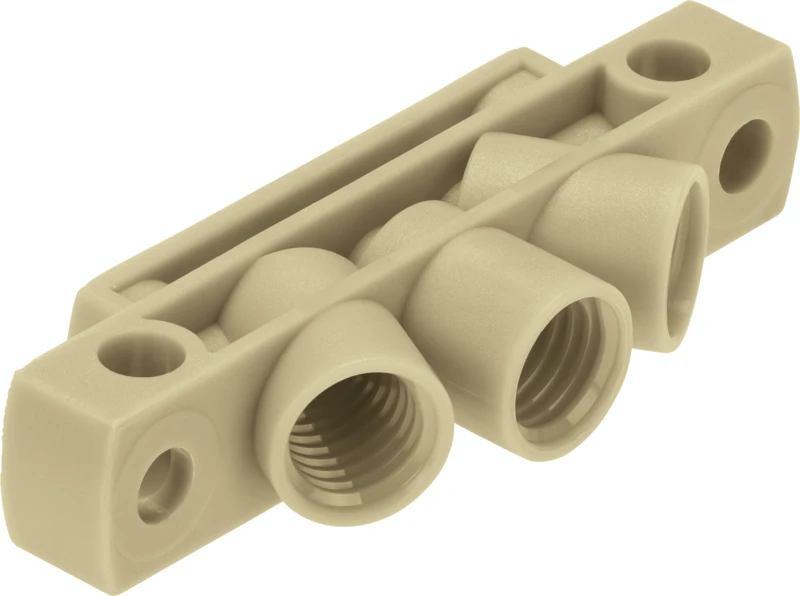

Sub-base, VABS-K1-7B-12-U14-P

Specifications • Media separated solenoid valves VYKA • Accessories, Sub-base • Nominal size 1.2 mm • Valve size 7 mm • Fluid connection Female thread 1/4-28 UNF-2B • Mounting position optional • Design Connection direction downwards • Flow direction Reversible • Operating medium Liquid media, Gaseous media • Note on operating and pilot medium Observe resistance of materials that come into contact with the media • Corrosion resistance class CRC 0 - No corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Storage temperature -20 °C ... 70 °C
