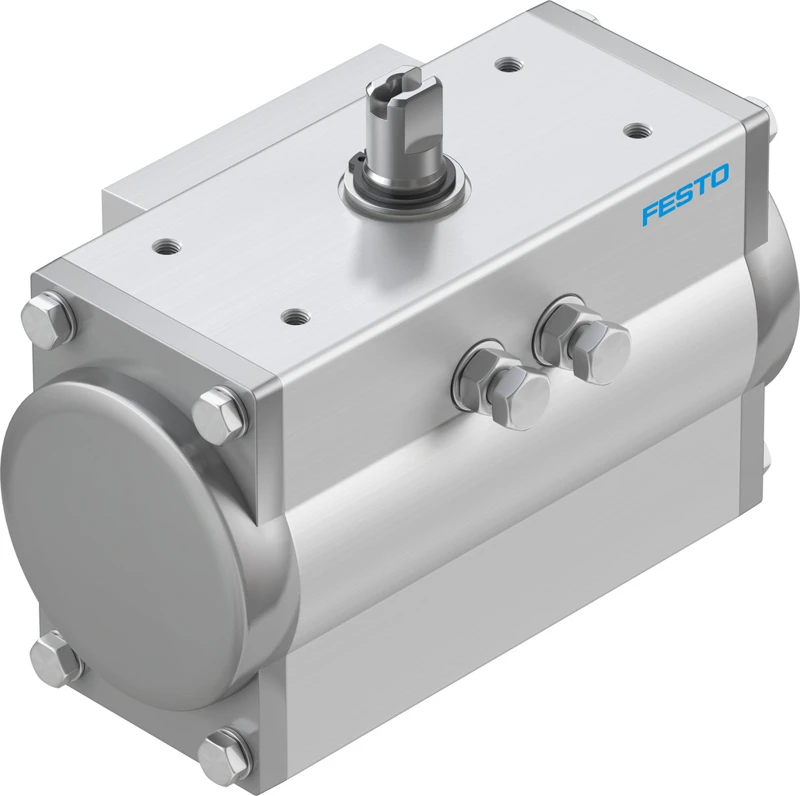

Semi-rotary drive, DFPD-20-RP-90-RD-F04
SKU: 8047614
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Quarter turn actuators DFPD
• Pneumatic connection G1/8
• Torque at nominal operating pressure and 0° swivel angle 20.1 Nm
• Swivel angle 90 deg
• Flange hole pattern F04
• Shaft connection T11
• Size of valve actuator 20
• End-position adjustment range at 0° -5 deg ... 5 deg
• End-position adjustment range at nominal swivel angle -5 deg ... 5 deg
• Shaft connection depth 12 mm
• Fitting connection conforms to standard ISO 5211
• Mounting position optional
• Mode of operation Double-acting
• Design Rack and pinion
Buy currently uses Select Automation shop pricing and checkout.
Quarter turn actuators DFPD
• Size 10 ... 2300
• Torque 10 ... 2300 Nm
• Swivel angle 90°, 120°, 135°, 180°
• Flange hole pattern to ISO 5211
• Connection pattern to NAMUR for solenoid valves/sensor boxes to VDI/VDE 3845
• Suitable for the automation of butterfly valves, ball valves and air dampers
• Also suitable for water/wastewater, beverage and pharmaceutical industries as well as process automation
